Intake Air Pressure and Temperature Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

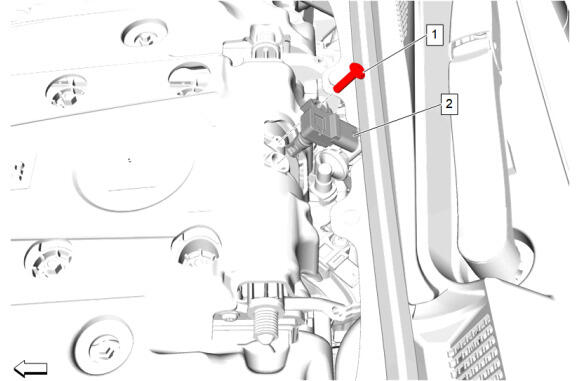

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Disconnect the electrical connector.
1	Intake Air Pressure and Temperature Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb/in)
2	Intake Air Pressure and Temperature Sensor

Callout

Component Name

Preliminary Procedures

Intake Air Pressure and Temperature Sensor Bolt

CAUTION:

Tighten
4.5 N.m (40 lb/in)

Intake Air Pressure and Temperature Sensor
