Fuel Pressure Sensor Replacement - Fuel Feed Pipe

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement

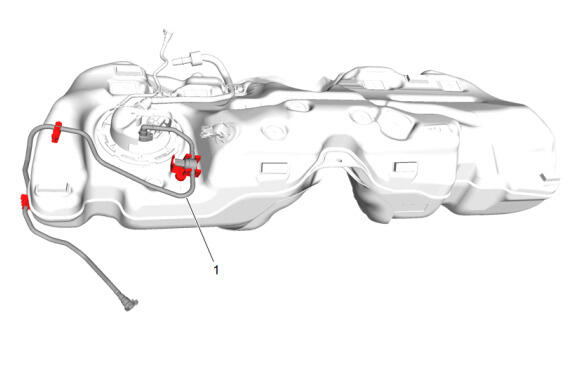

1	Fuel Pressure Sensor NOTE: Fuel pressure sensor is serviced as part of fuel pump fuel feed hose assembly. Procedure Disconnect the electrical connector. Disconnect quick connect fittings and remove from the 3 retainers. Plastic Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Fuel Tank Replacement

Fuel Pressure Sensor

NOTE:

Fuel pressure sensor is serviced as part of fuel pump fuel feed hose assembly.

Procedure

Disconnect the electrical connector.
Disconnect quick connect fittings and remove from the 3 retainers. Plastic Collar Quick Connect Fitting Service
