Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

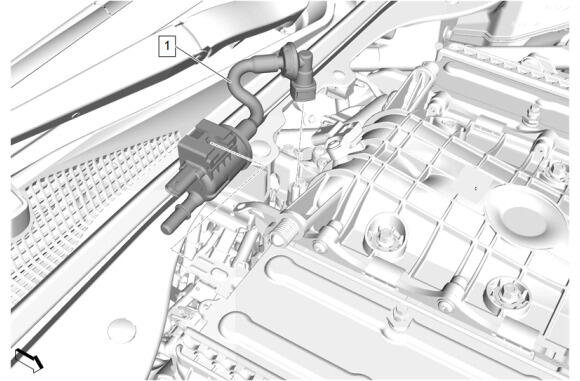

GM5519730Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Evaporative Emission Pipe @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect - Plastic Collar Quick Connect Fitting Service
1 Evaporative Emission Canister Purge Solenoid Valve

Procedure

  1. Disconnect the quick disconnect. Plastic Collar Quick Connect Fitting Service
  2. Release the retaining tab and remove from the bracket.
