Charge Air Bypass Valve Replacement - Right Side
WARNING: This page is about a different variant/trim than selected.

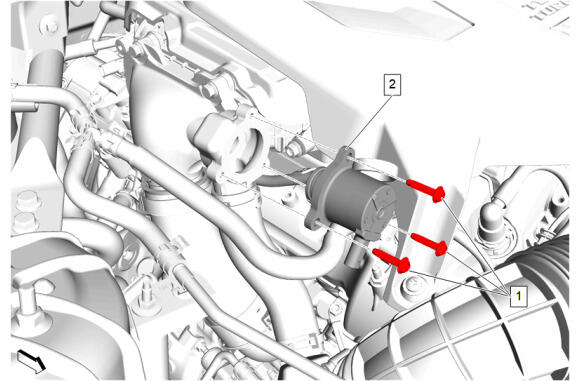

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the electrical connector. |
|
| 1 | Charge Air Bypass Valve Bolt [ 3x ]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb/in) |
| 2 | Charge Air Bypass Valve |
