Charge Air Bypass Valve Replacement - Left Side

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

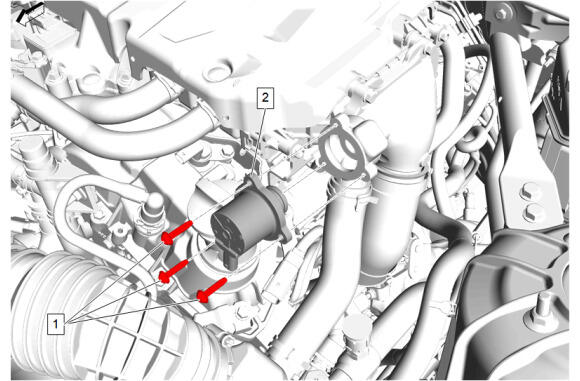

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Disconnect the electrical connector.
1	Charge Air Bypass Valve Bolt [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb/in)
2	Charge Air Bypass Valve

Callout

Component Name

Preliminary Procedures

Charge Air Bypass Valve Bolt [ 3x ]

CAUTION:

Tighten
9 N.m (80 lb/in)

Charge Air Bypass Valve
