Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

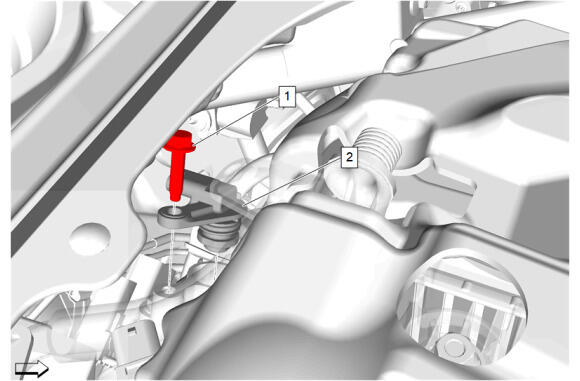

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb/in)
2	Camshaft Position Sensor Procedure Disconnect electrical connector and reposition wiring harness. Lubricate the O-ring seal with clean engine oil.

Callout

Component Name

Camshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb/in)

Camshaft Position Sensor

Procedure
