Camshaft Position Sensor Replacement - Bank 1 (Right Side) Exhaust

WARNING: This page is about a different variant/trim than selected.

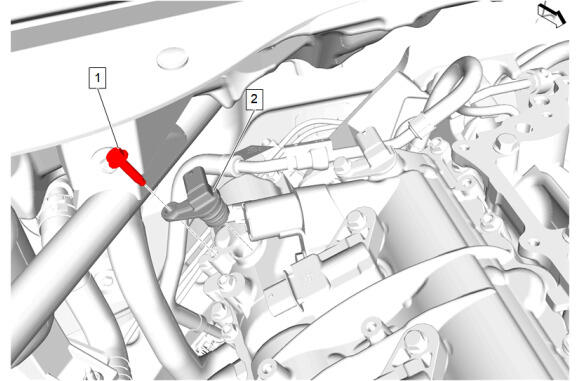

GM5514791Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Camshaft Position Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb/in)
2 Camshaft Position Sensor

Procedure

  1. Disconnect electrical connector and reposition wiring harness.
  2. Lubricate the O-ring seal with clean engine oil.
