Camshaft Position Actuator Locating Pin Control Valve Replacement - Bank 2

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

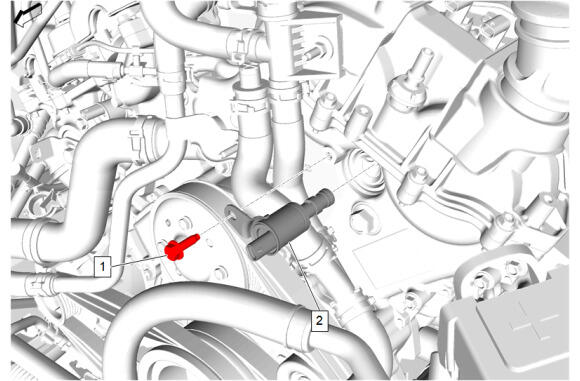

Callout	Component Name
Preliminary Procedures Air Cleaner Assembly Replacement Disconnect the electrical connector.
1	Camshaft Position Actuator Locating Pin Control Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb/in)
2	Camshaft Position Actuator Locating Pin Control Valve

Callout

Component Name

Preliminary Procedures

Camshaft Position Actuator Locating Pin Control Valve Bolt

CAUTION:

Tighten
10 N.m (89 lb/in)

Camshaft Position Actuator Locating Pin Control Valve
