Accelerator Pedal Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

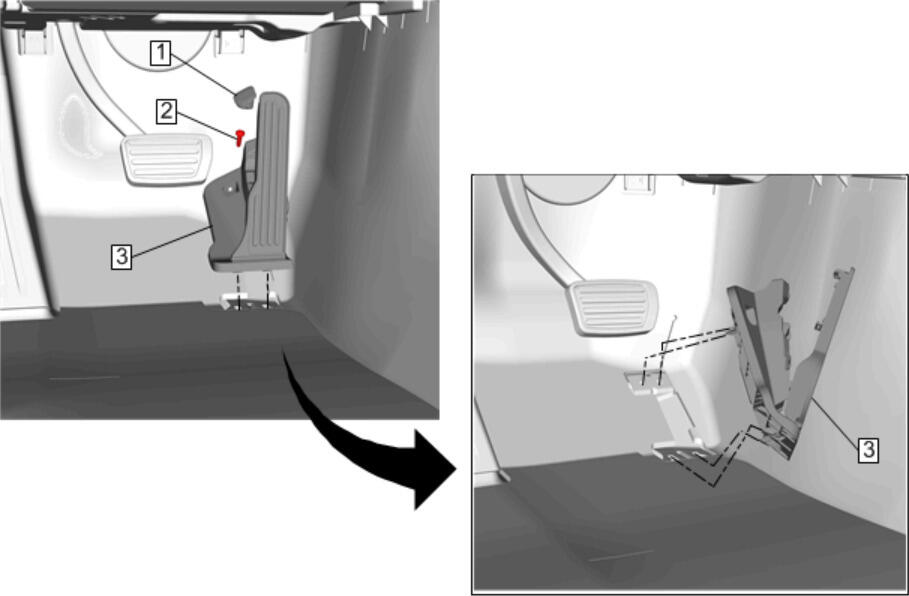

Callout	Component Name
1	Accelerator Pedal Cover
2	Accelerator Pedal Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb/in)
3	CAUTION: When installing the Accelerator Pedal do NOT use a mallet or excessive force on the pedal assembly or damage to the pedal assembly could occur, requiring replacement of the pedal assembly. Accelerator Pedal Procedure Disconnect the connector from the accelerator pedal. Tilt the top of the accelerator pedal rearward. Slide the accelerator pedal back to disengage its lower retaining tabs.

Callout

Component Name

Accelerator Pedal Cover

Accelerator Pedal Bracket Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb/in)

CAUTION:

When installing the Accelerator Pedal do NOT use a mallet or excessive force on the pedal assembly or damage to the pedal assembly could occur, requiring replacement of the pedal assembly.

Accelerator Pedal

Procedure

Disconnect the connector from the accelerator pedal.
Tilt the top of the accelerator pedal rearward.
Slide the accelerator pedal back to disengage its lower retaining tabs.
