Installation Procedure

WARNING: This page is about a different variant/trim than selected.

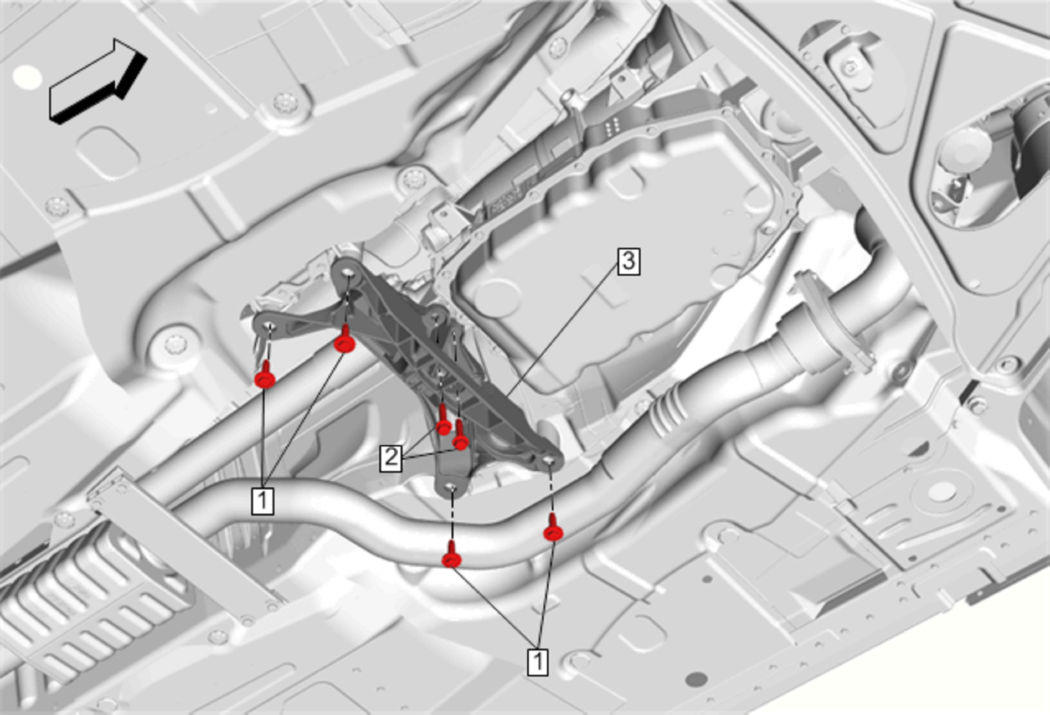

  1. GM4244875Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Transmission Support Crossmember Bolt (1) - Tighten -

    1. Transmission Mount Replacement (AWD)
    2. Transmission Mount Replacement (RWD)

  2. Lower the vehicle. Lifting and Jacking the Vehicle

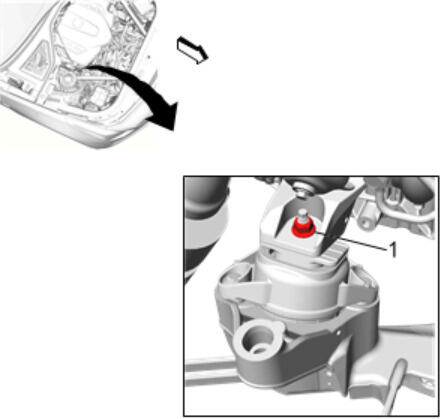

  3. GM4252963Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut (1) - Tighten - Drivetrain and Front Suspension Cradle Removal and Installation (RWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (AWD)

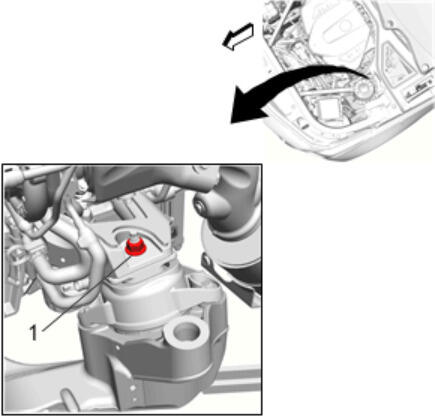

  4. GM4252960Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut (1) - Tighten - Drivetrain and Front Suspension Cradle Removal and Installation (RWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (AWD)
