Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Fuel Injection Fuel Rail Assembly-Bank 1 - Remove - Fuel Injection Fuel Rail Assembly Replacement - Bank 1
  2. Fuel Injection Fuel Rail Assembly-Bank 2 - Remove - Fuel Injection Fuel Rail Assembly Replacement - Bank 2

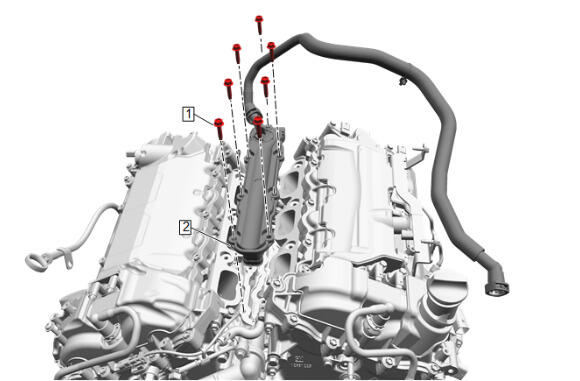

  3. GM5519764Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Oil Separator Bolt (1) - Remove [ 7x ]

  4. Positive Crankcase Ventilation Oil Separator (2) - Remove
