Installation Procedure

WARNING: This page is about a different variant/trim than selected.

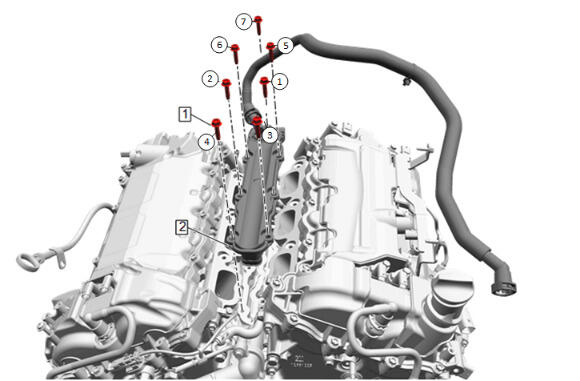

  1. GM5647099Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Oil Separator (2) - Install

  2. Positive Crankcase Ventilation Oil Separator Bolt (1) - Install and tighten in sequence [ 7x ] 10 N.m (89 lb/in)
  3. Fuel Injection Fuel Rail Assembly-Bank 2 - Install - Fuel Injection Fuel Rail Assembly Replacement - Bank 2
  4. Fuel Injection Fuel Rail Assembly-Bank 1 - Install - Fuel Injection Fuel Rail Assembly Replacement - Bank 1
