Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Oil Pan - Remove - Upper Oil Pan Replacement (AWD) , or Upper Oil Pan Replacement (RWD)
  2. Oil Pump Sprocket - Remove - Oil Pump Sprocket Replacement

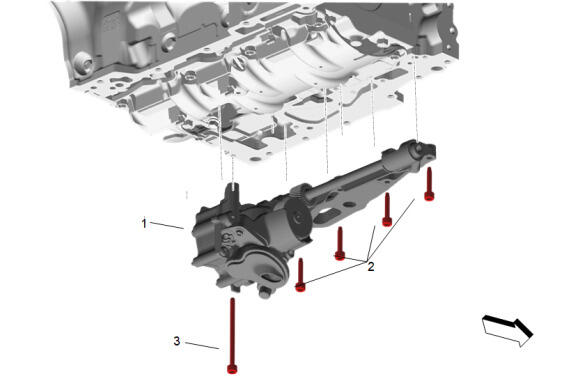

  3. GM5519275Courtesy of GENERAL MOTORS COMPANY

    Oil Pump Bolt (2, 3) - Remove [ 5x ]

  4. Oil Pump (1) - Remove
