Oil Pump Suction Pipe Removal

WARNING: This page is about a different variant/trim than selected.

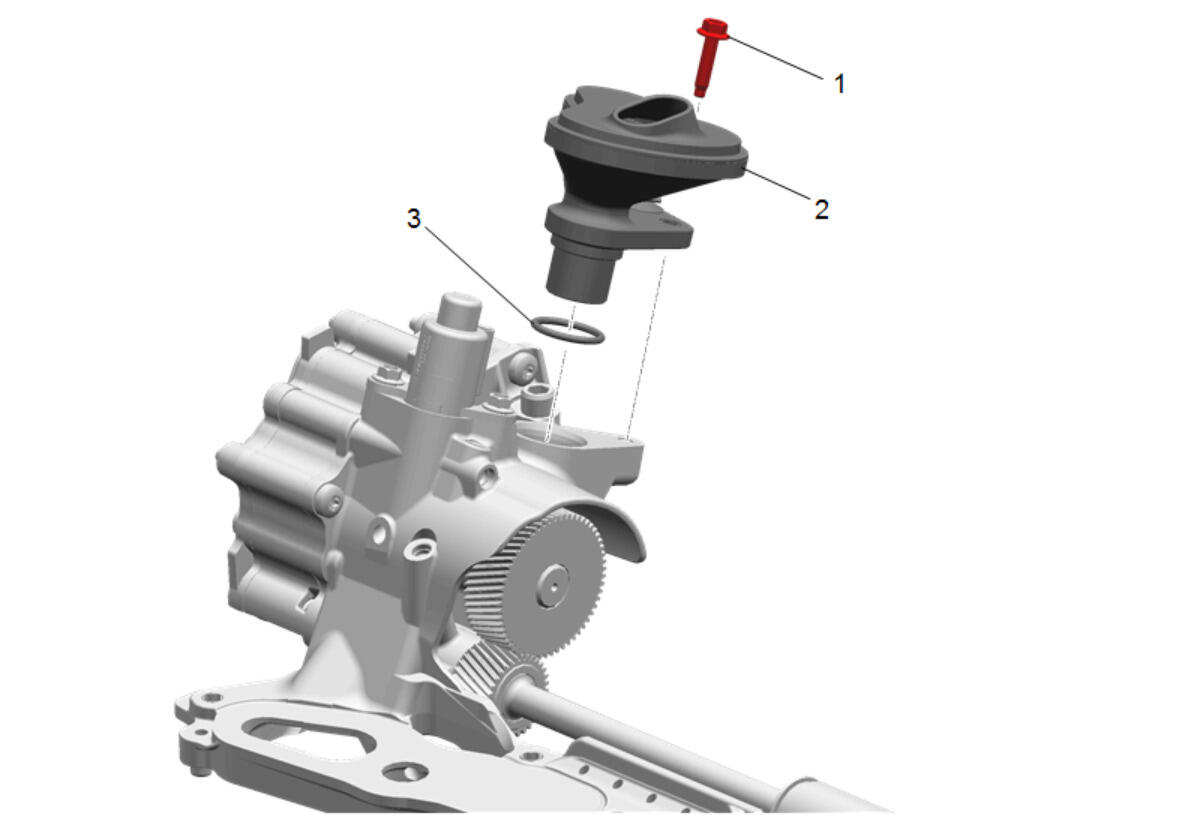

  1. GM5337963Courtesy of GENERAL MOTORS COMPANY

    Oil Pump Suction Pipe Bolt (1) - Remove

  2. Oil Pump Suction Pipe (2) - Remove
  3. Oil Pump Suction Pipe Gasket (3) - Remove and DISCARD
