Oil Pump Suction Pipe Installation

WARNING: This page is about a different variant/trim than selected.

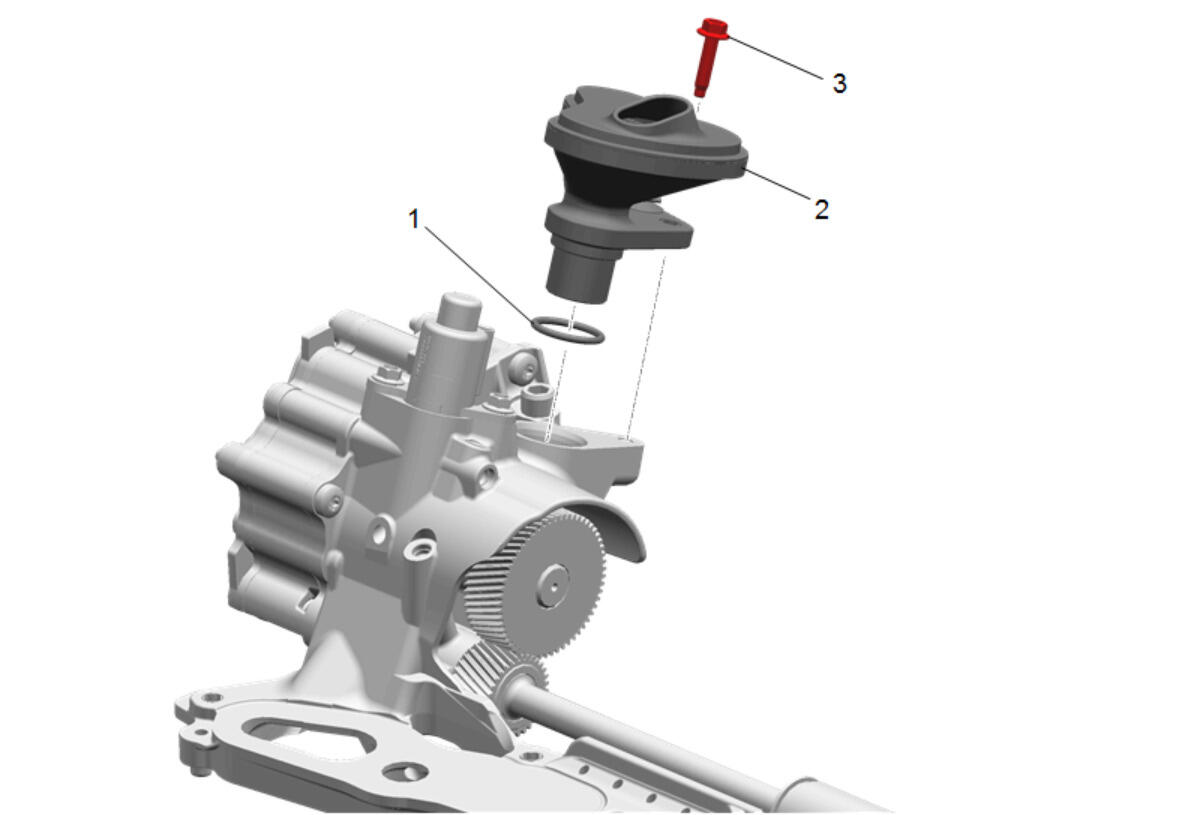

  1. GM5337973Courtesy of GENERAL MOTORS COMPANY

    Oil Pump Suction Pipe Gasket (1) - Install NEW

  2. Oil Pump Suction Pipe (2) - Install
  3. Oil Pump Suction Pipe Bolt (3) - Install and tighten 10 N.m (89 lb/in)
