Oil Pump Housing Passage Outer Seal and Sprocket Removal

WARNING: This page is about a different variant/trim than selected.

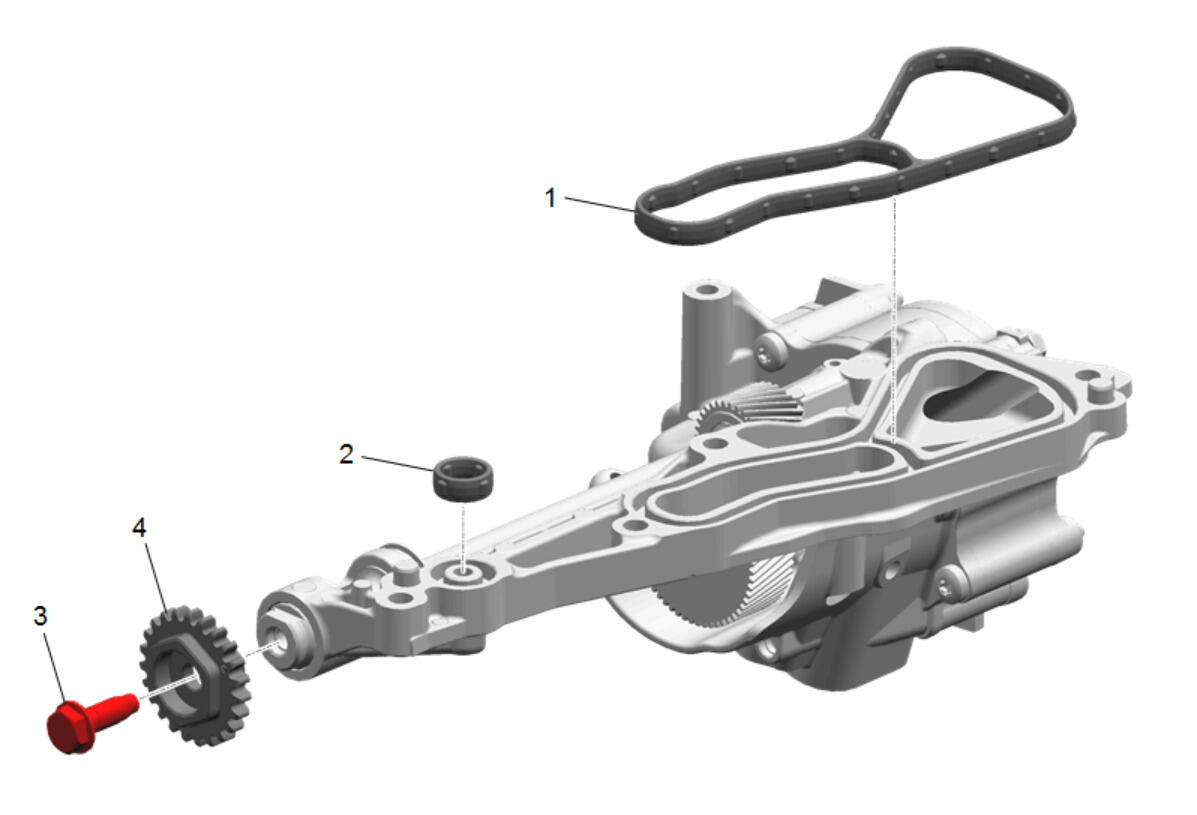

GM5337969Courtesy of GENERAL MOTORS COMPANY
  1. Oil Pump Housing Passage Seal (1) - Remove and DISCARD
  2. Oil Pump Housing Passage Seal (2) - Remove and DISCARD
  3. Oil Pump Drive Bolt (3) - Remove and DISCARD
  4. Oil Pump Sprocket (4) - Remove
