Oil Pump Housing Passage Outer Seal and Sprocket Installation

WARNING: This page is about a different variant/trim than selected.

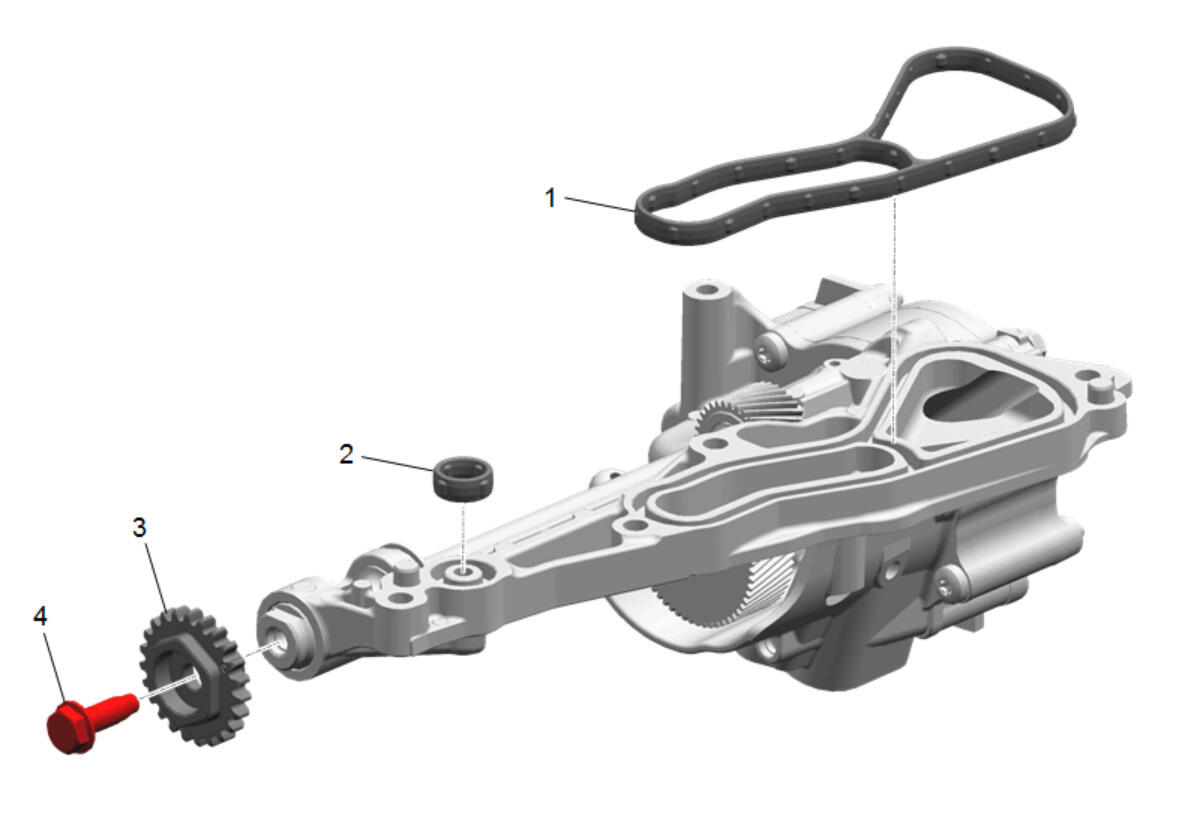

GM5337971

Courtesy of GENERAL MOTORS COMPANY

Oil Pump Housing Passage Seal (1) - Install NEW
Oil Pump Housing Passage Seal (2) - Install NEW
Oil Pump Sprocket (3) - Install

CAUTION:

Refer to Fastener Caution .

Oil Pump Drive Bolt (4) - Install NEW and tighten
1. First Pass: 15 N.m (11 lb-ft)
2. Final Pass: 110 degrees
