Oil Pump Flow Control Valve Removal
WARNING: This page is about a different variant/trim than selected.

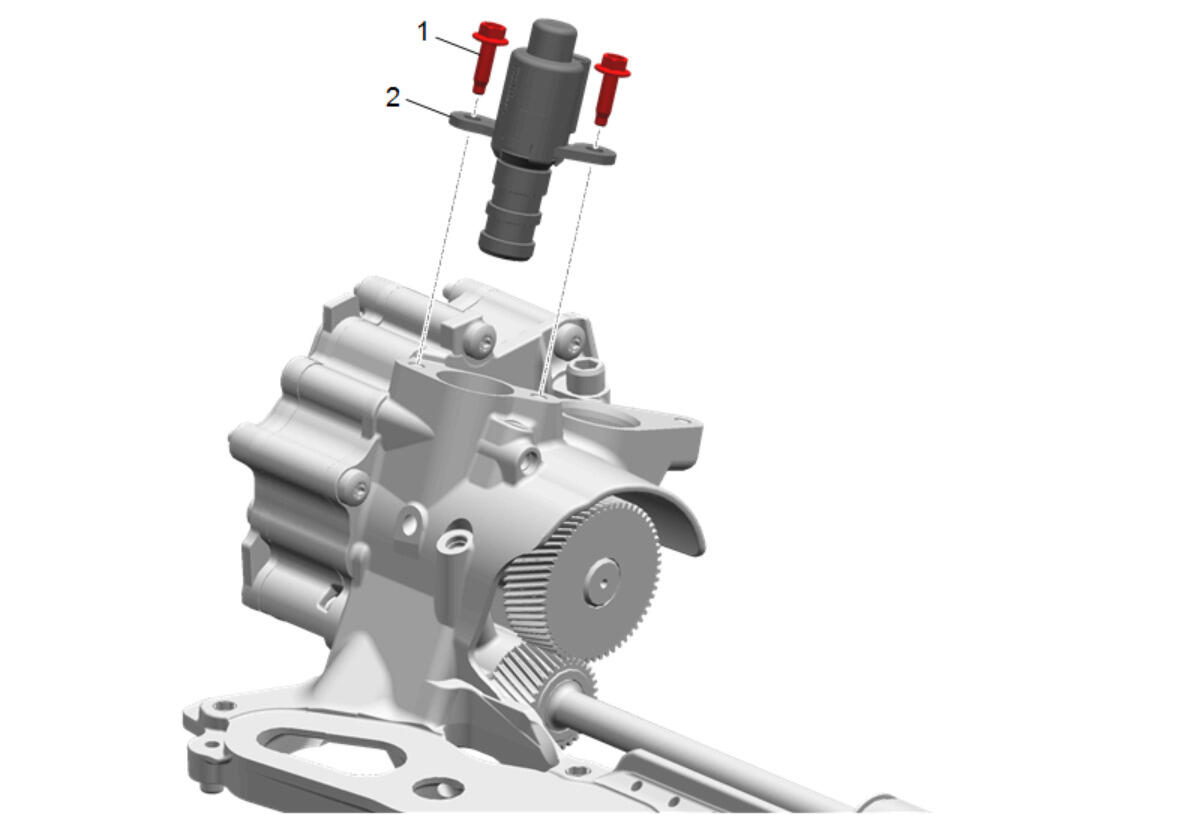

Oil Pump Flow Control Valve Bolt (1) - Remove
- Oil Pump Flow Control Valve (2) - Remove
CAUTION:
After removing the oil pump flow control valve, ensure the entire valve has been removed and there is no debris left in the oil pump bore. Failure to ensure the oil pump bore is free from debris may result in engine damage.
