Oil Pump Flow Control Valve Installation

WARNING: This page is about a different variant/trim than selected.

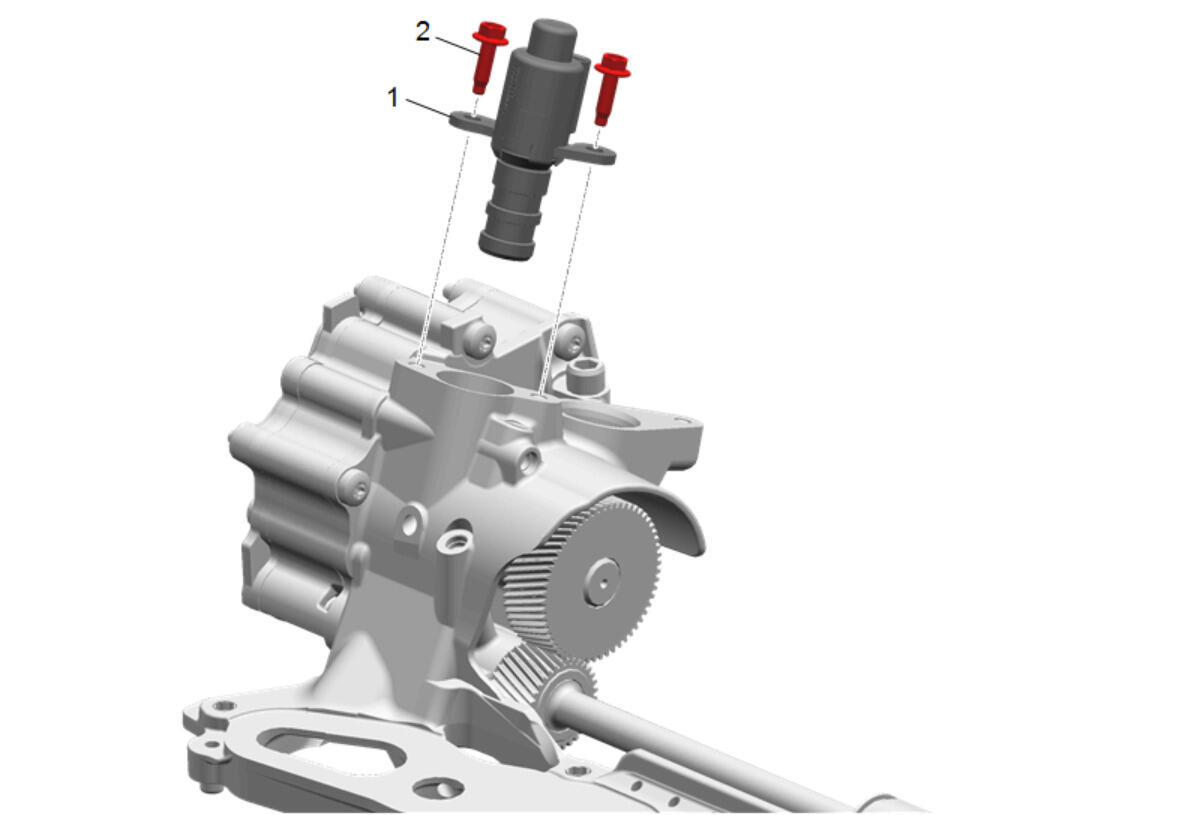

  1. GM5337972Courtesy of GENERAL MOTORS COMPANY

    Oil Pump Flow Control Valve (1) - Install

  2. Oil Pump Flow Control Valve Bolt (2) - Install and tighten 8.5 N.m (75 lb/in)
