Installation Procedure
WARNING: This page is about a different variant/trim than selected.

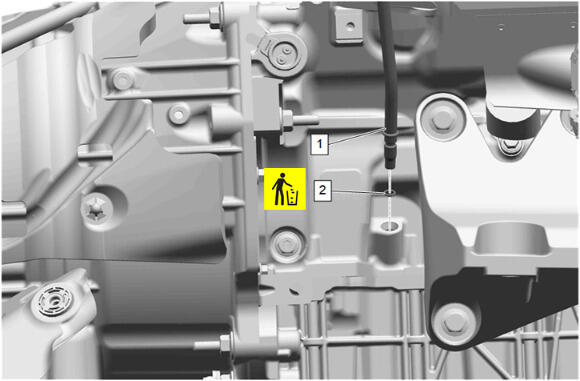

Install the NEW O-ring (2) on the oil level indicator tube (1).

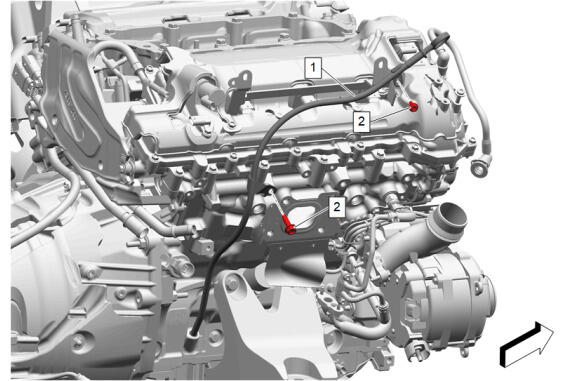

Position the oil level indicator tube (1) by sliding the tube down and in to the approximate location of the lower crankcase hole.
- Guide the lower portion of the oil level indicator tube into the lower crankcase hole and seat the oil level indicator tube in place
- CAUTION:
Refer to Fastener Caution .
Oil Level Indicator Tube Bracket Bolt (2) - Install and tighten [ 2x ] 10 N.m (89 lb/in)
- Compressor Air Intake Turbocharger- Right Side - Install - Compressor Air Intake Turbocharger Replacement - Right Side
