Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM4257176Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Cover (1) - Remove - Charge Air Cooler Cover Replacement

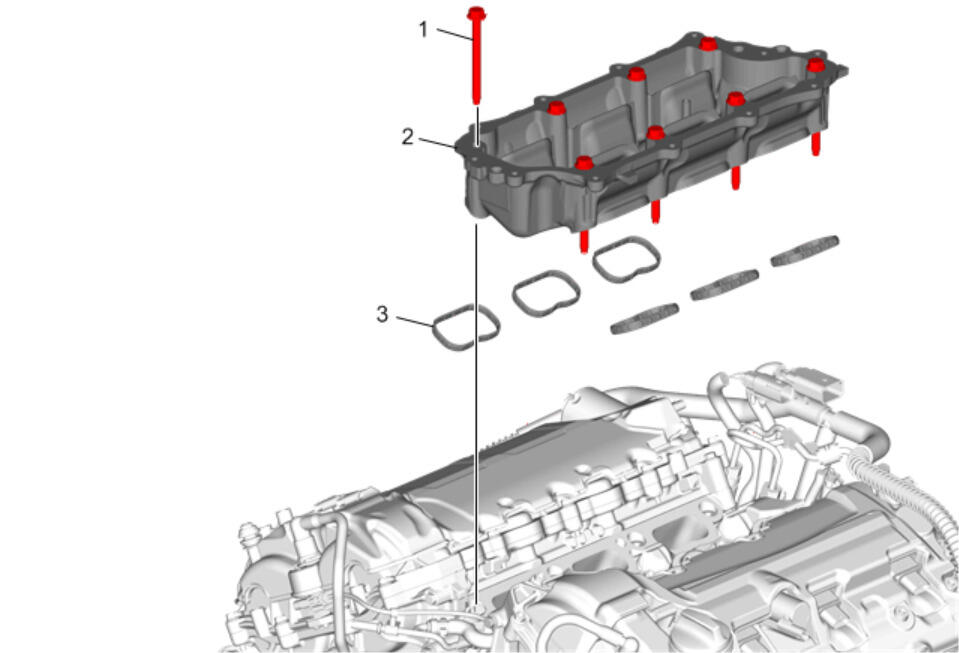

  2. GM4113702Courtesy of GENERAL MOTORS COMPANY

    Lower Intake Manifold Bolt (1) - Remove [ 8x ]

  3. Intake Manifold (2) - Remove
  4. Intake Manifold Seal (3) - Remove and DISCARD [ 6x ]
