Installation Procedure
WARNING: This page is about a different variant/trim than selected.

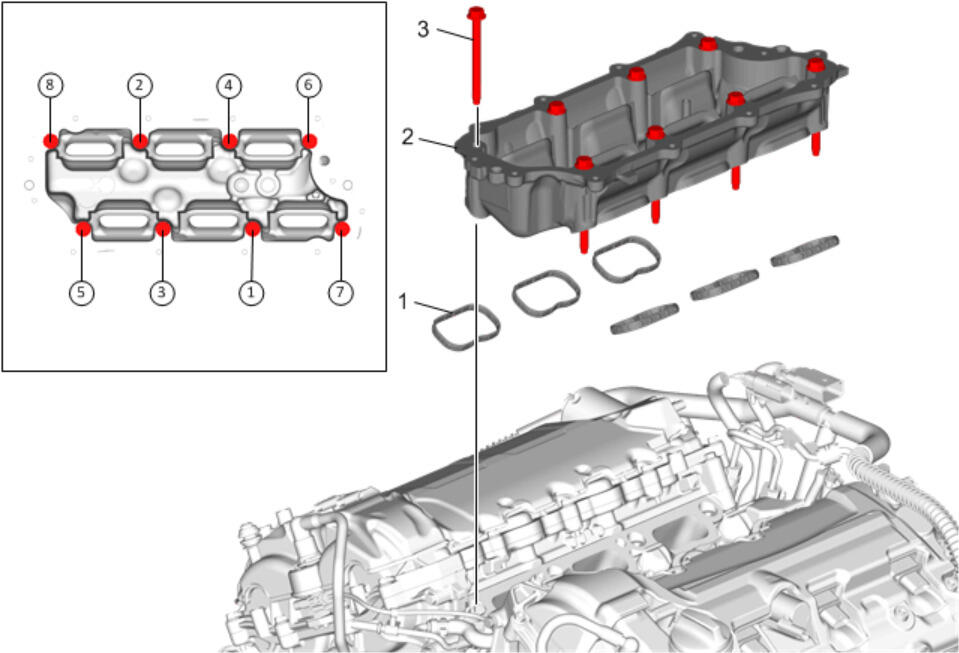

Intake Manifold Seal (1) - Install NEW [ 6x ]
- Intake Manifold (2) - Install
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Lower Intake Manifold Bolt (3) - Tighten in sequence [ 8x ] 25 N.m (18 lb-ft)
Charge Air Cooler Cover (1) - Install - Charge Air Cooler Cover Replacement
CAUTION:
Refer to Fastener Caution .
