Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM4078960Courtesy of GENERAL MOTORS COMPANY

    Oil Pan - Remove - Upper Oil Pan Replacement (AWD) , or Upper Oil Pan Replacement (RWD)

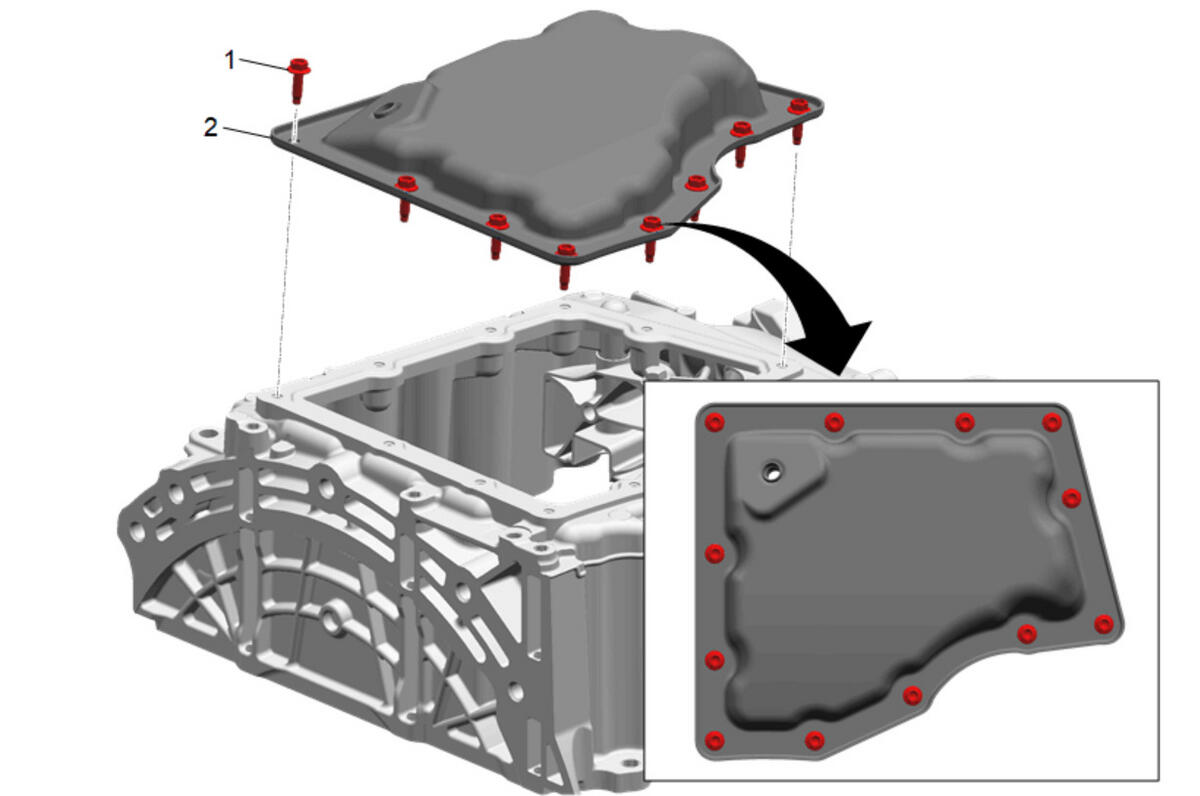

  2. GM5337989Courtesy of GENERAL MOTORS COMPANY

    Lower Oil Pan Bolt (1) - Remove [ 12x ]

  3. Lower Oil Pan (2) - Remove and DISCARD

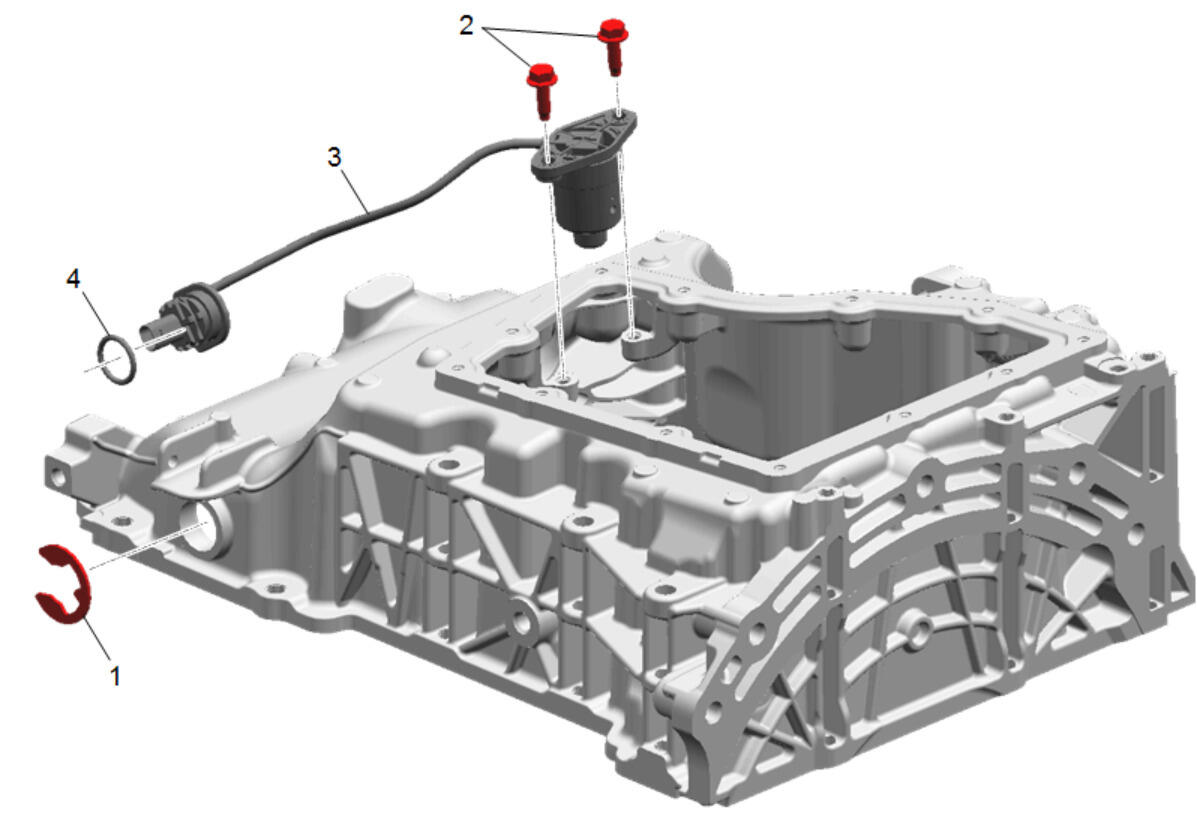

  4. GM5337991Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Level Switch Clip (1) - Remove

  5. Engine Oil Level Indicator Switch Bolt (2) - Remove [ 2x ]
  6. Engine Oil Level Indicator Switch (3) - Remove
  7. Engine Oil Level Indicator Switch O-Ring Seal (4) - Remove and DISCARD
