Engine Mount Replacement - Left Side
WARNING: This page is about a different variant/trim than selected.

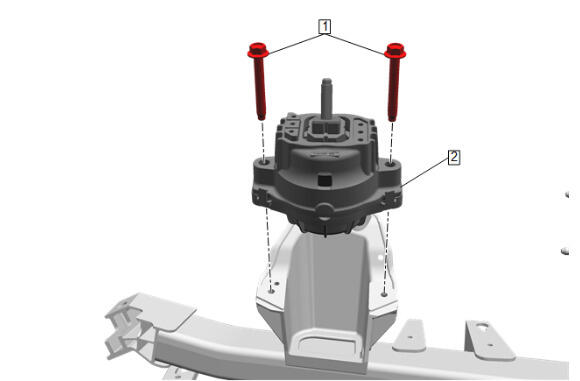

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drivetrain and Front Suspension Cradle Removal and Installation (RWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (AWD) |
|
| 1 | Engine Mount Bolt [ 2x ]
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb-ft) |
| 2 | Engine Mount |
