Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Automatic Transmission Flex Plate - Remove - Automatic Transmission Flex Plate Replacement
  2. GM4143992Courtesy of GENERAL MOTORS COMPANY

    Remove the oil pan bolts (1).

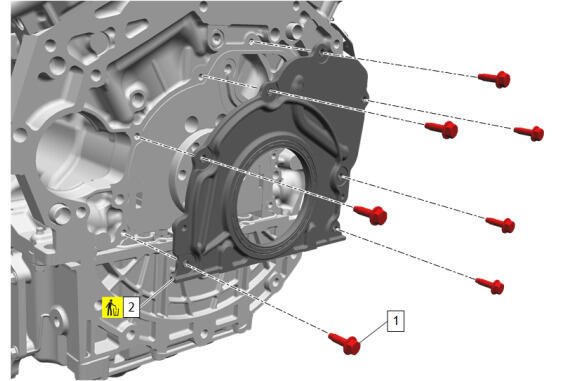

  3. GM5573809Courtesy of GENERAL MOTORS COMPANY

    Remove the crankshaft rear oil seal housing bolts. (1) [ 7x ]

  4. Remove and DISCARD the crankshaft rear oil seal housing. (2)
