Disassemble Procedure

WARNING: This page is about a different variant/trim than selected.

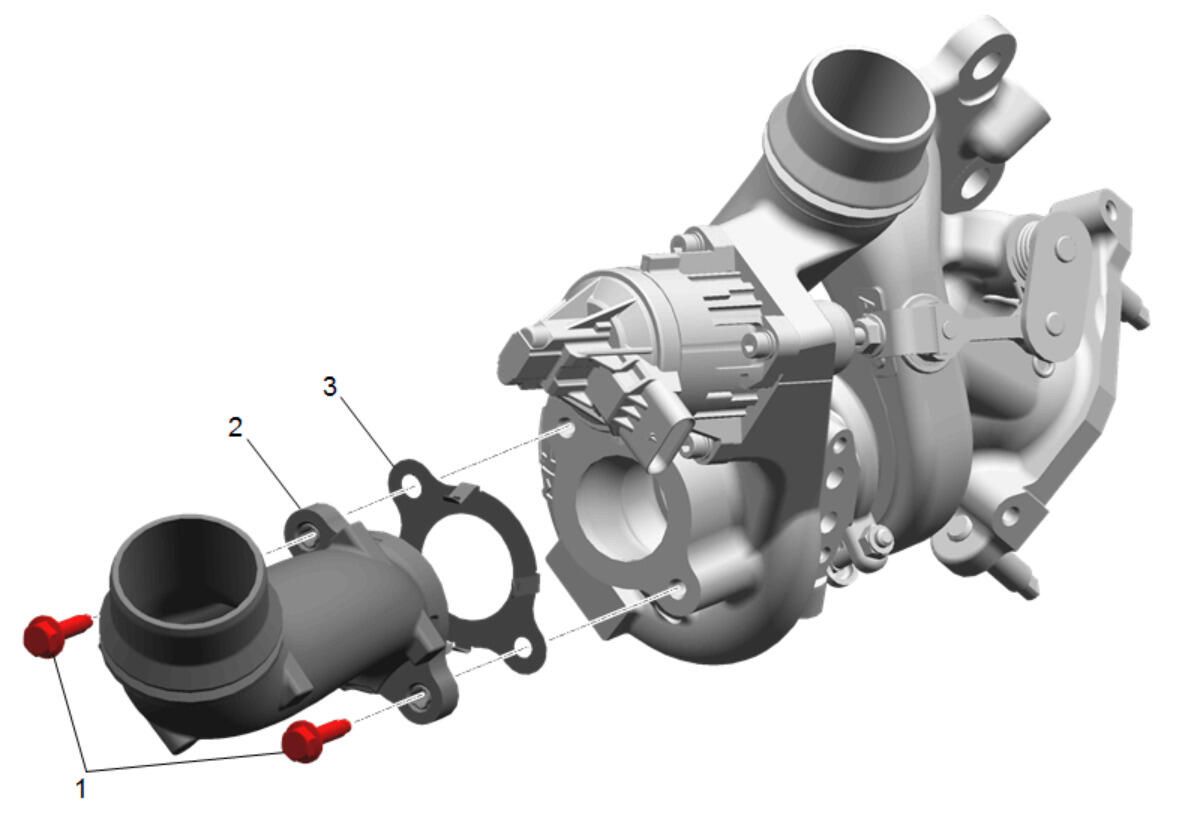

  1. GM5337895Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Air Inlet Adapter Bolt (1) - Remove [ 2x ]

  2. Turbocharger Air Inlet Adapter (2) - Remove
  3. Turbocharger Air Inlet Adapter Seal (3) - Remove and DISCARD

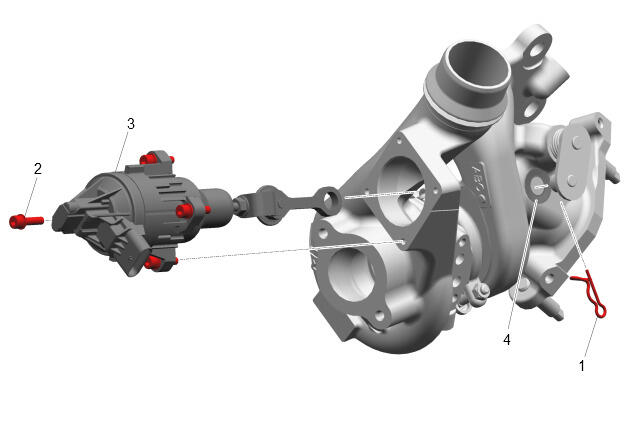

  4. GM5337908Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Arm Retainer (1) - Remove

  5. Turbocharger Wastegate Actuator Bolt (2) - Remove [ 4x ]
  6. Turbocharger Wastegate Actuator (3) - Remove
  7. Turbocharger Wastegate Actuator Rod Spring (4) - Remove
