Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM5413177Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (2) - Remove - Intake Manifold Cover Replacement

  2. GM4256755Courtesy of GENERAL MOTORS COMPANY

    Harness Connector (1) - Disconnect

  3. Retainer (2) - Disconnect [ 2x ]

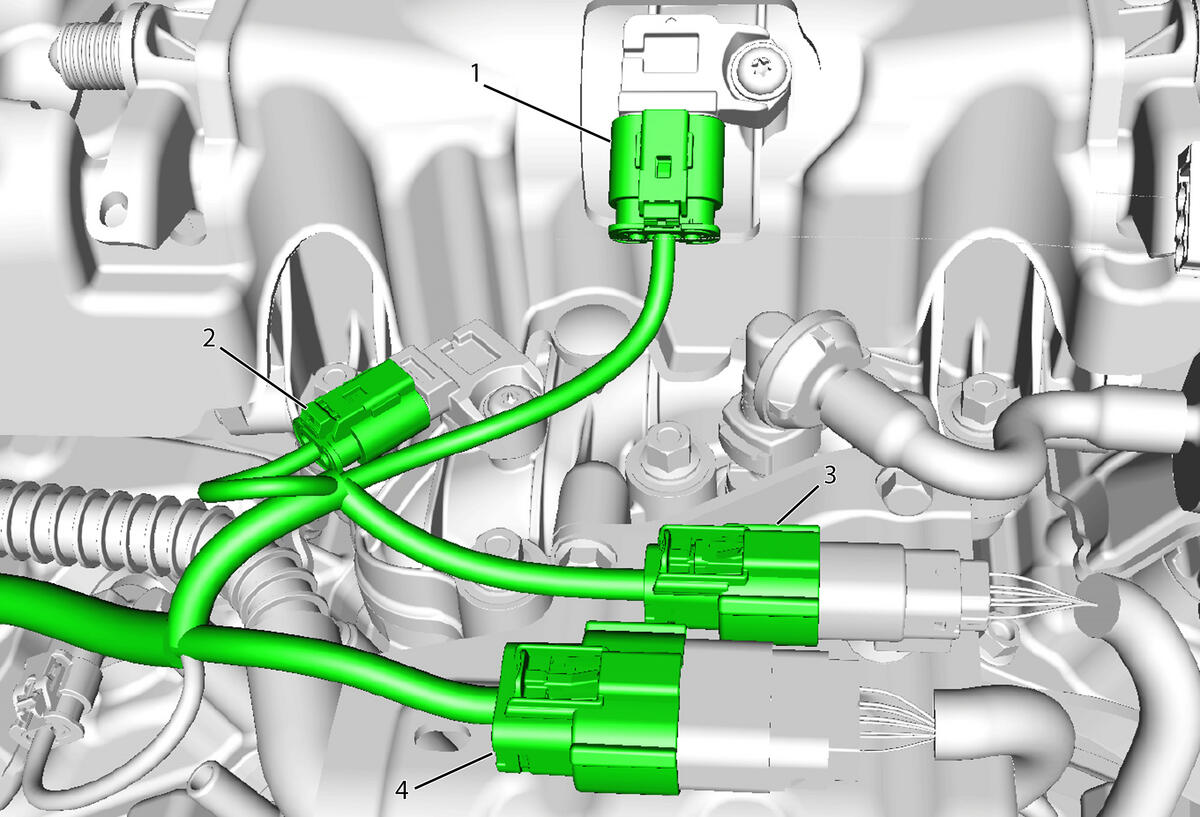

  4. GM4256823Courtesy of GENERAL MOTORS COMPANY

    Harness Connector (1) - Disconnect

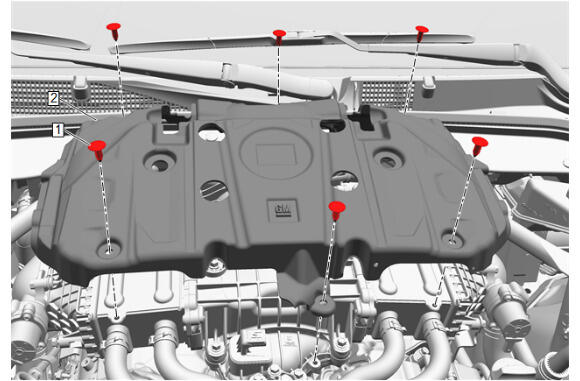

  5. GM5423188Courtesy of GENERAL MOTORS COMPANY

    Remove the 6 charge air cooler upper insulator retainers (1).

  6. Charge Air Cooler Upper Insulator (2) - Remove
