Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (2) - Remove - Intake Manifold Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Cover (1) - Remove - Charge Air Cooler Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

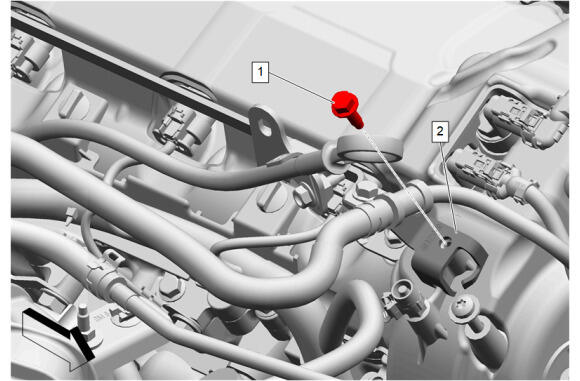

Remove the surge tank inlet hose bracket bolt (1).
Position the inlet hose bracket (2) aside.
Courtesy of GENERAL MOTORS COMPANY

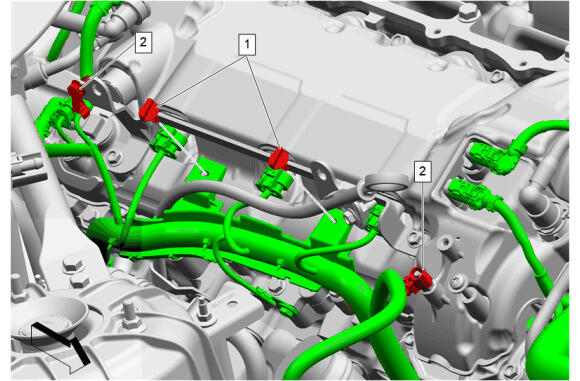

Wiring Harness Retainer (1) - Remove [ 2x ]
Disconnect and reposition harness (2) as necessary.
Courtesy of GENERAL MOTORS COMPANY

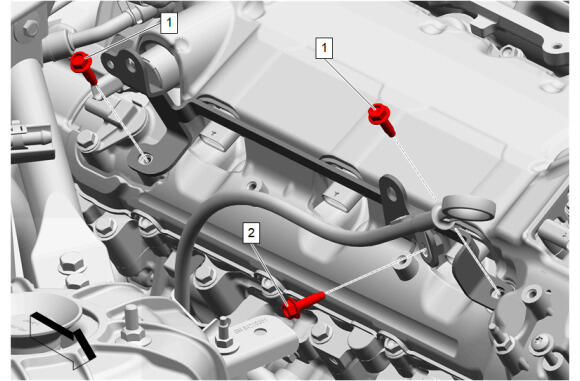

Remove the (2) left side lower turbocharger wastegate bracket bolts (1).
Oil Level Indicator Tube Bracket Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

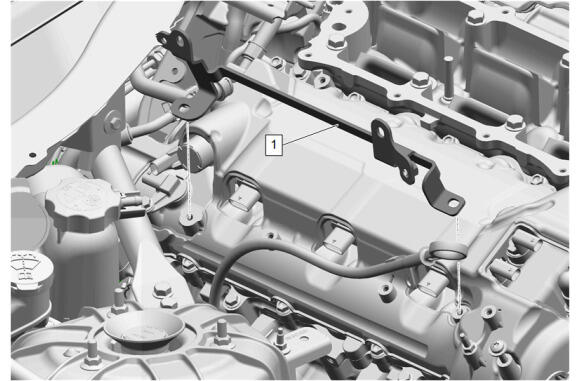

Remove the right side lower turbocharger wastegate bracket (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Replace the noise cancelling foam component if it is exposed to and absorbed automotive fluids.

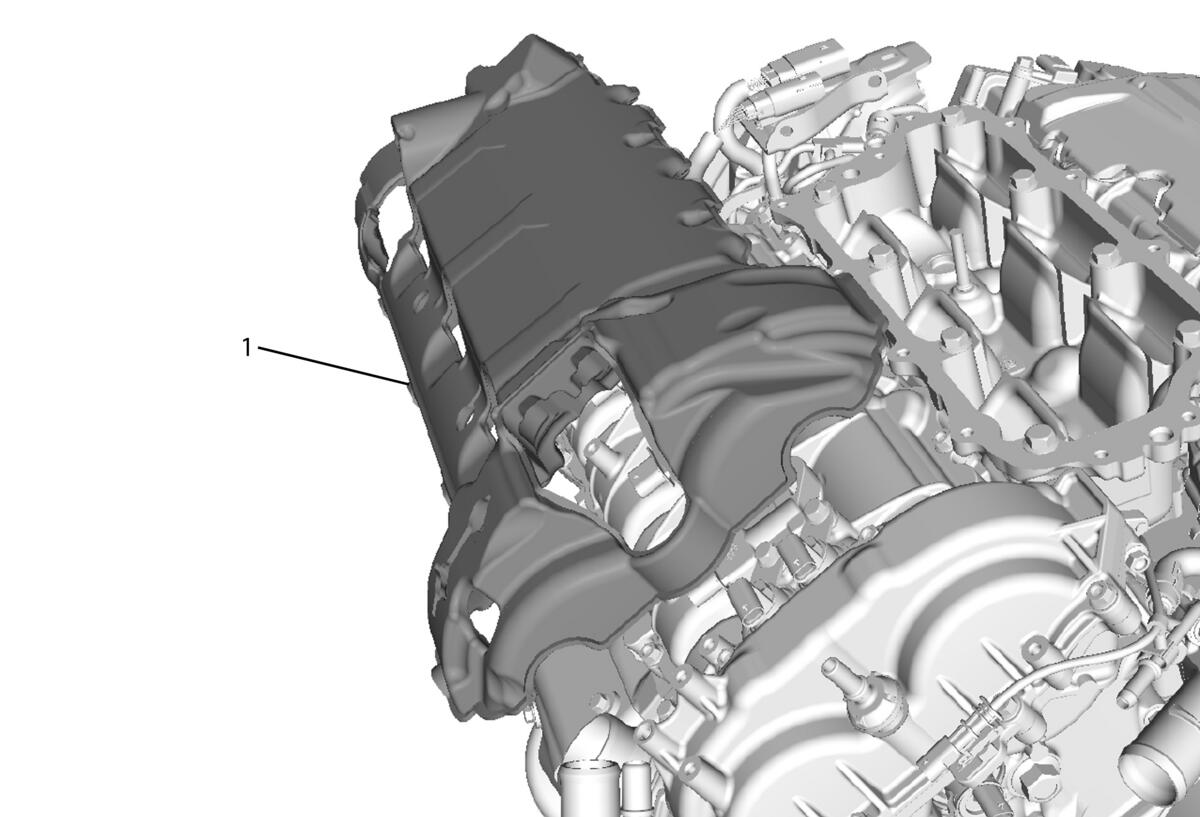

Camshaft Housing Cover Insulator (1) - Remove
