Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (2) - Remove - Intake Manifold Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Cover (1) - Remove - Charge Air Cooler Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

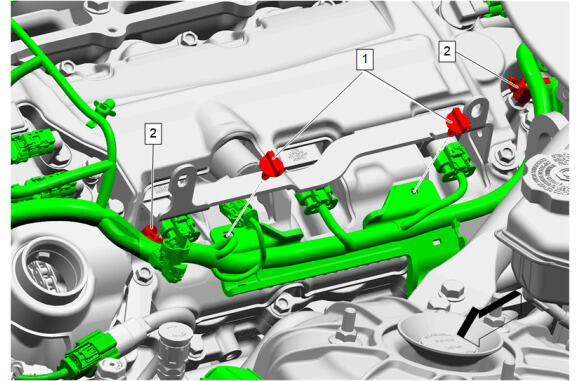

Wiring Harness Retainer (1) - Remove [ 2x ]
Disconnect and reposition harness as necessary (2)
Courtesy of GENERAL MOTORS COMPANY

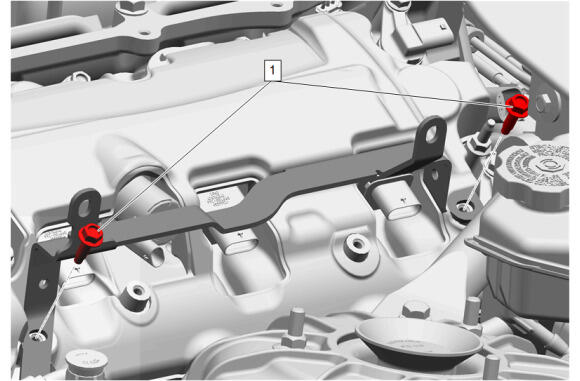

Remove the 2 left side lower turbocharger wastegate bracket bolts (1).
Courtesy of GENERAL MOTORS COMPANY

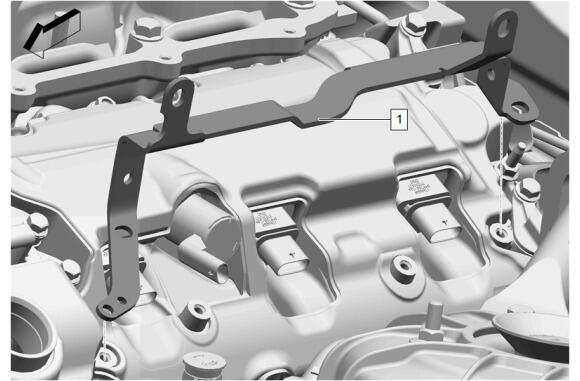

Remove the left side lower turbocharger wastegate bracket (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Replace the noise cancelling foam component if it is exposed to and absorbed automotive fluids.

Camshaft Housing Cover Insulator (1) - Remove
