Removal Procedure
WARNING: This page is about a different variant/trim than selected.
Camshaft Housing Cover Insulator- Right Side (1) - Remove - Camshaft Housing Cover Insulator Replacement - Right Side
- Positive Crankcase Ventilation Tube @ Camshaft Cover - Disconnect

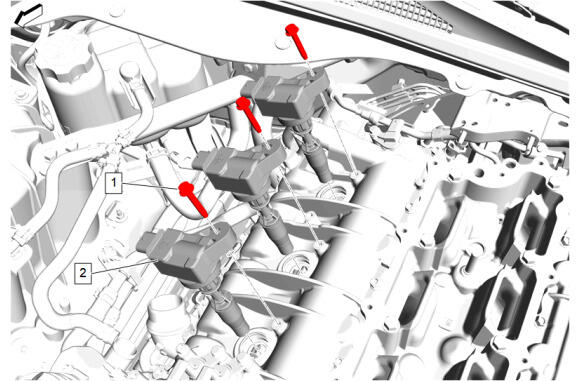

Ignition Coil (2) - Remove [ 3x ] - Ignition Coil Replacement - Bank 1

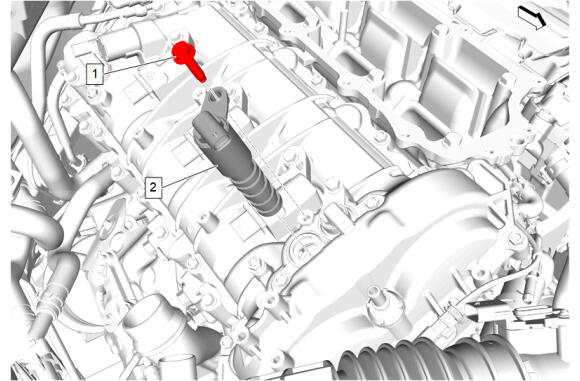

Camshaft Position Actuator Valve Solenoid (2) - Remove - Camshaft Position Actuator Valve Solenoid Replacement - Bank 1 (Right Side) Exhaust

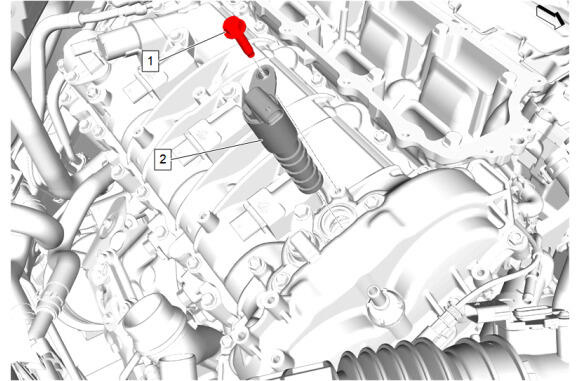

Camshaft Position Actuator Valve Solenoid (2) - Remove - Camshaft Position Actuator Valve Solenoid Replacement - Bank 1 (Right Side) Intake
- Disconnect and remove the engine wiring harness from the camshaft cover.
Camshaft Cover Bolt (1) - Remove [ 18x ]
- Camshaft Cover (2) - Remove
- Camshaft Cover Seal (3) - Remove and DISCARD
- Clean, inspect, and overhaul the camshaft cover as needed. Camshaft Cover Overhaul
