Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement

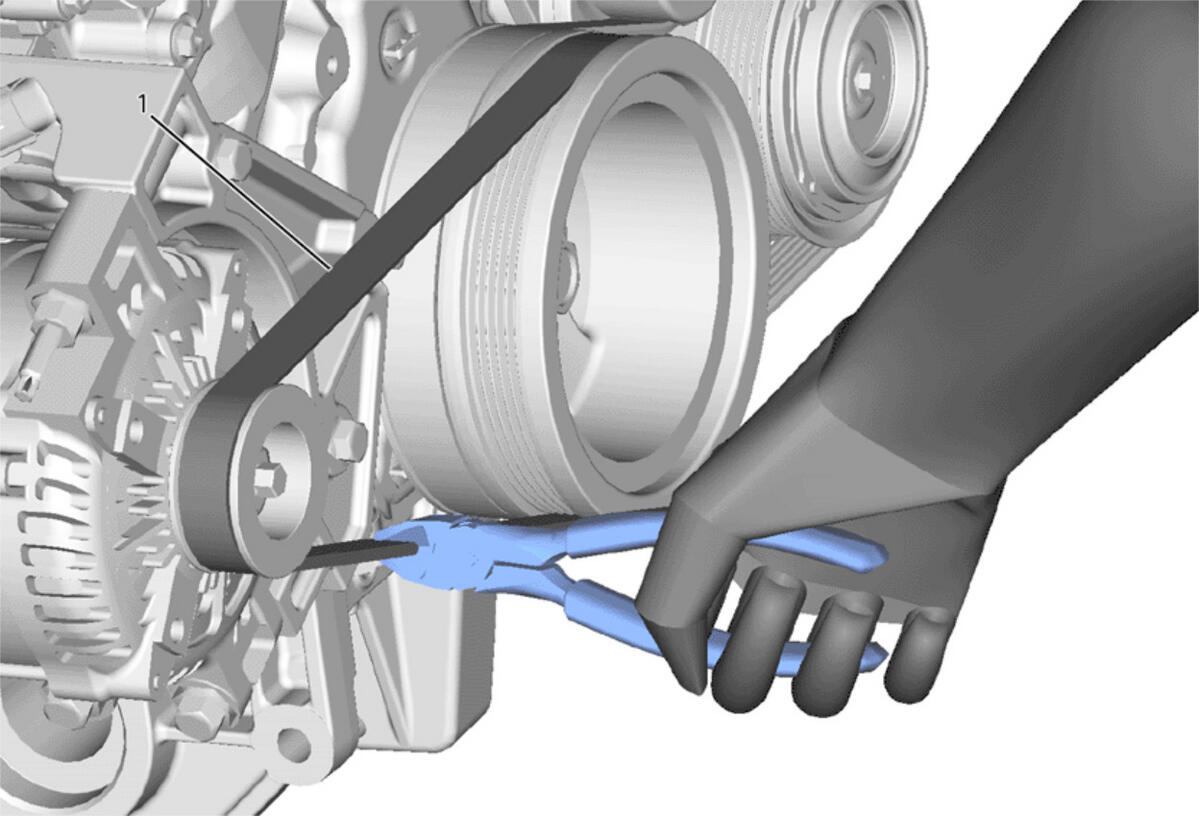

  2. GM4246487Courtesy of GENERAL MOTORS COMPANY

    Cut the accessory drive auxiliary belt (1) from generator pulley and crankshaft balancer.
