Turbocharger and Components (Right Side)

WARNING: This page is about a different variant/trim than selected.

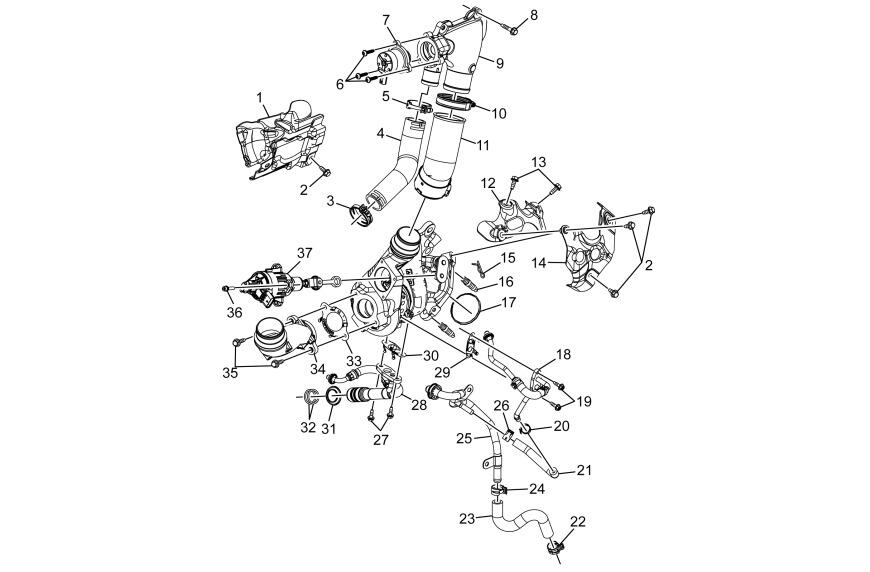

Fig 1: Exploded View Of Turbocharger Components (Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Starter Heat Shield
2	Turbocharger Heat Shield Bolt [ 4x ]
3	Charge Air Bypass Valve Hose Clamp
4	Charge Air Bypass Valve Hose
5	Charge Air Bypass Valve Hose Clamp
6	Turbocharger Bypass Valve Solenoid Bolt [ 3x ]
7	Turbocharger Bypass Valve Solenoid
8	Charge Air Cooler Inlet Air Tube Bolt [ 4x ]
9	Charge Air Cooler Inlet Air Tube
10	Charge Air Cooler Inlet Air Hose Clamp
11	Charge Air Cooler Inlet Air Hose
12	Turbocharger Heat Shield
13	Turbocharger Heat Shield Bolt [ 2x ]
14	Turbocharger Heat Shield
15	Turbocharger Wastegate Actuator Arm Retainer
16	Turbocharger Exhaust Pipe Stud [ 2x ]
17	Turbocharger Exhaust Pipe Gasket
18	Turbocharger Coolant Feed and Return Pipe
19	Turbocharger Coolant Feed and Return Pipe Bolt [ 2x ]
20	Engine Oil Cooler Inlet Hose Clamp
21	Engine Oil Cooler Inlet Hose
22	Engine Oil Cooler Inlet Hose Clamp
23	Engine Oil Cooler Inlet Hose
24	Engine Oil Cooler Inlet Hose Clamp
25	Engine Oil Cooler Inlet Pipe
26	Engine Oil Cooler Inlet Hose Clamp
27	Turbocharger Oil Feed Pipe Bolt
28	Turbocharger Oil Feed Pipe [ 2x ]
29	Turbocharger Coolant Feed and Return Pipe Gasket
30	Turbocharger Oil Feed Pipe Gasket
31	Turbocharger Tube Seal
32	Turbocharger Oil Return Pipe Seal [ 2x ]
33	Turbocharger Air Inlet Adapter Seal
34	Turbocharger Air Inlet Adapter
35	Turbocharger Air Inlet Adapter Bolt [ 2x ]
36	Turbocharger Wastegate Actuator Bolt [ 4x ]
37	Turbocharger Wastegate Actuator
38	Turbocharger - Right Side
