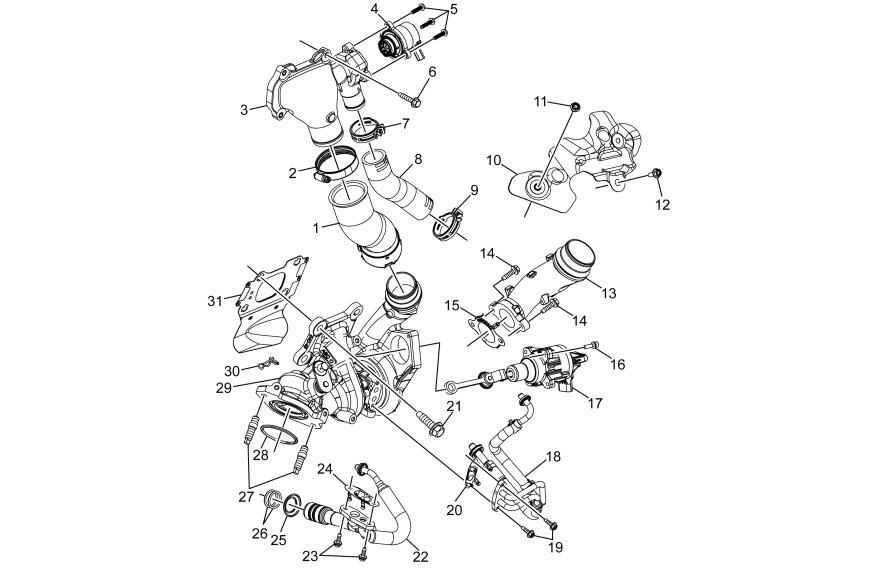

Turbocharger and Components (Left Side)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Charge Air Cooler Inlet Air Hose |
| 2 | Charge Air Cooler Inlet Air Hose Clamp |
| 3 | Charge Air Cooler Inlet Air Tube |
| 4 | Turbocharger Bypass Valve Solenoid |
| 5 | Turbocharger Bypass Valve Solenoid Bolt [ 3x ] |
| 6 | Charge Air Cooler Inlet Air Tube Bolt [ 4x ] |
| 7 | Charge Air Bypass Valve Hose Clamp |
| 8 | Charge Air Bypass Valve Hose |
| 9 | Charge Air Bypass Valve Hose Clamp |
| 10 | Turbocharger Heat Shield |
| 11 | Turbocharger Heat Shield Bolt |
| 12 | Turbocharger Heat Shield Bolt |
| 13 | Turbocharger Air Inlet Adapter |
| 14 | Turbocharger Air Inlet Adapter Bolt [ 2x ] |
| 15 | Turbocharger Air Inlet Adapter Seal |
| 16 | Turbocharger Wastegate Actuator Bolt [ 4x ] |
| 17 | Turbocharger Wastegate Actuator |
| 18 | Turbocharger Coolant Feed and Return Pipe |
| 19 | Turbocharger Coolant Feed and Return Pipe Bolt [ 2x ] |
| 20 | Turbocharger Coolant Feed and Return Pipe Gasket |
| 21 | Turbocharger Bolt [ 4x ] |
| 22 | Turbocharger Oil Feed Pipe |
| 23 | Turbocharger Oil Feed Pipe Bolt [ 2x ] |
| 24 | Turbocharger Oil Feed Pipe Gasket |
| 25 | Turbocharger Tube Seal |
| 26 | Turbocharger Oil Return Pipe Seal [ 2x ] |
| 27 | Turbocharger Exhaust Pipe Stud [ 2x ] |
| 28 | Turbocharger Exhaust Pipe Gasket |
| 29 | Turbocharger - Left Side |
| 30 | Turbocharger Wastegate Actuator Arm Retainer |
| 31 | Turbocharger Gasket |
