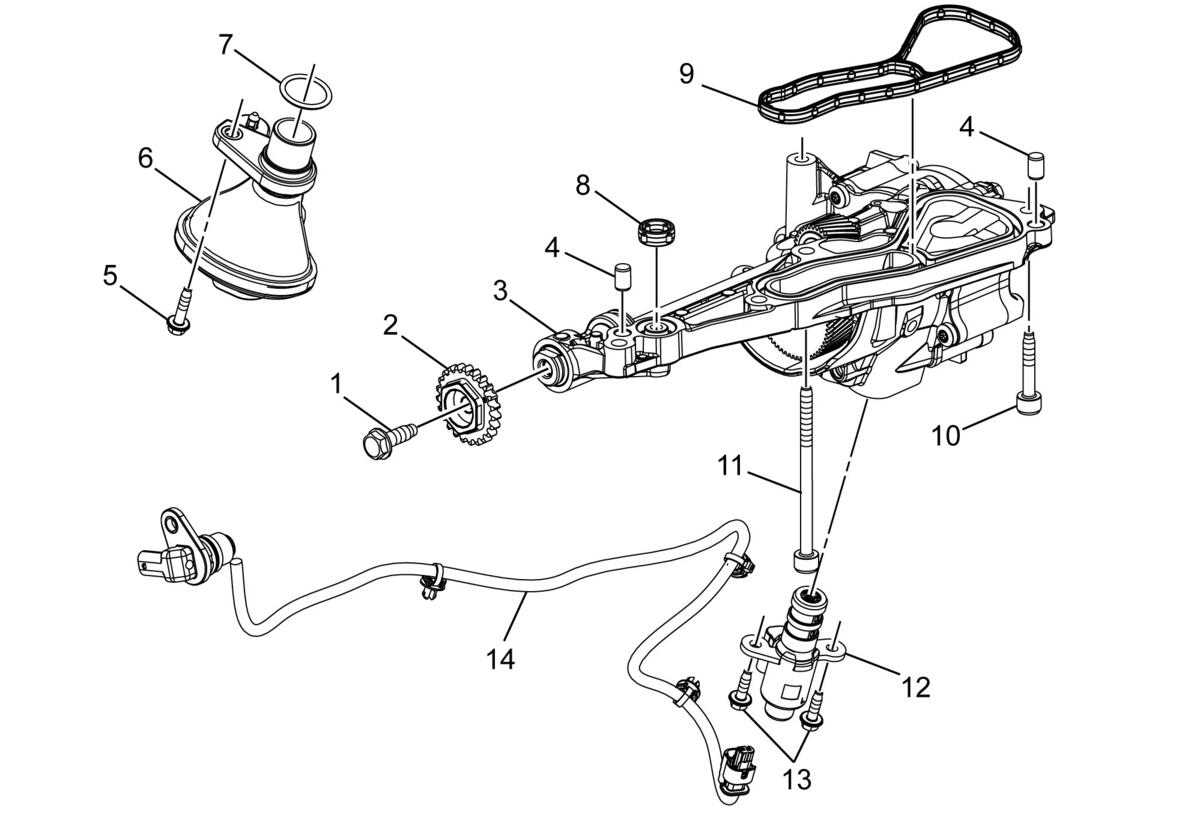

Oil Pump Assembly
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Oil Pump Sprocket Bolt |
| 2 | Oil Pump Sprocket |
| 3 | Oil Pump |
| 4 | Dowel Pin - Not Serviceable |
| 5 | Oil Pump Suction Pipe Bolt [ 2x ] |
| 6 | Oil Pump Suction Pipe |
| 7 | Oil Pump Suction Pipe Gasket |
| 8 | Oil Pump Housing Passage Seal |
| 9 | Oil Pump Housing Passage Seal |
| 10 | Oil Pump Bolt [ 4x ] |
| 11 | Oil Pump Bolt [ 2x ] |
| 12 | Oil Pump Flow Control Valve |
| 13 | Oil Pump Flow Control Valve Bolt [ 2x ] |
| 14 | Oil Pump Flow Control Solenoid Valve Wiring |
