Oil Pan and Components with Oil Cooler
WARNING: This page is about a different variant/trim than selected.

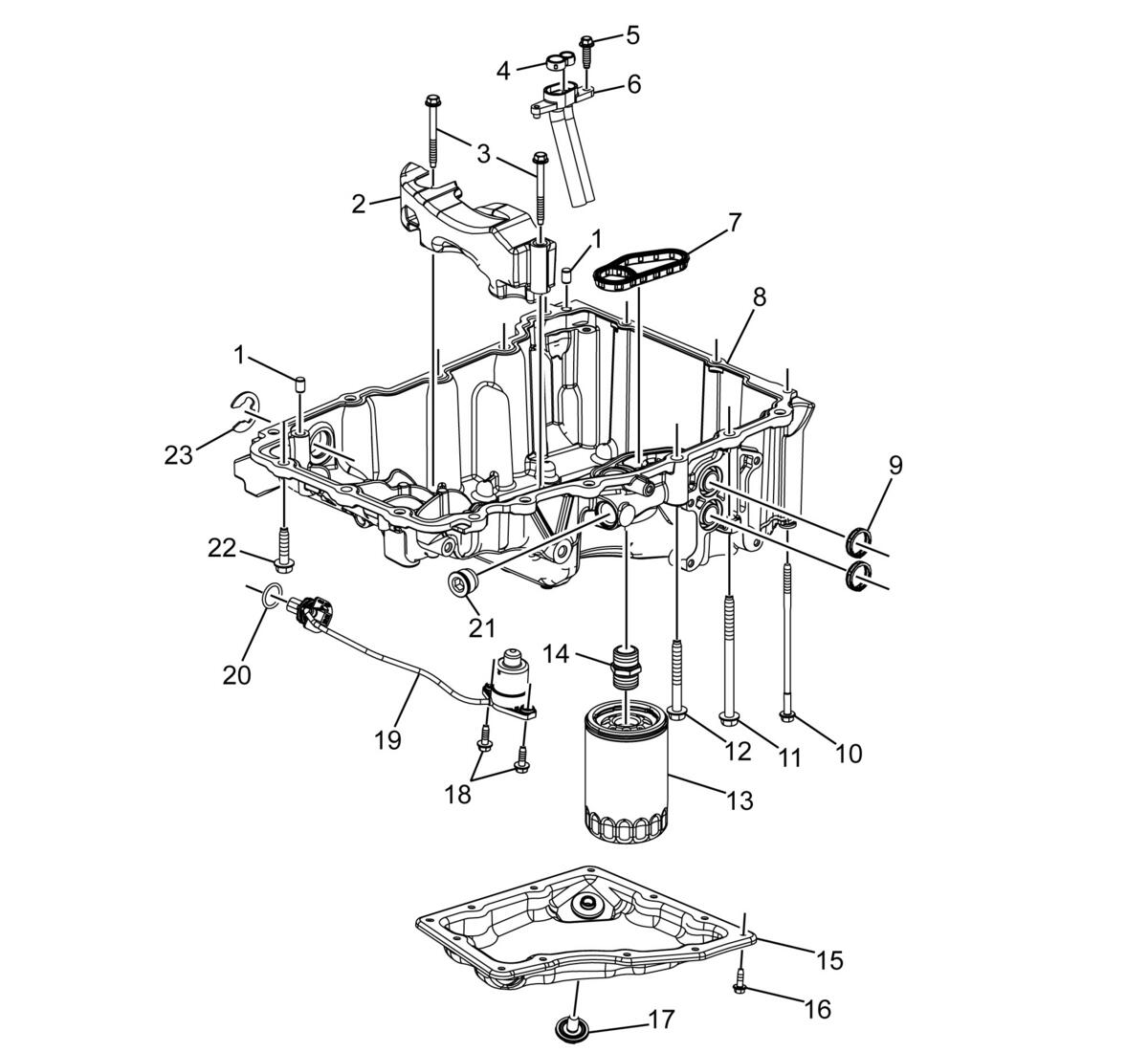

Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Dowel Pin [ 2x ] |
| 2 |
Oil Pan Baffle |
| 3 |
Oil Pan Baffle Bolt [ 2x ] |
| 4 |
Positive Crankcase Ventilation Oil Separator Drain Seal |
| 5 |
Positive Crankcase Ventilation Oil Separator Drain Bolt |
| 6 |
Positive Crankcase Ventilation Oil Separator Drain |
| 7 |
Oil Pan High Pressure Port Seal |
| 8 |
Oil Pan |
| 9 |
Engine Oil Cooler Adapter Seal [ 2x ] |
| 10 |
Oil Pan Cover Bolt [ 2x ] |
| 11 |
Oil Pan Bolt [ 3x ] M6 x 150 |
| 12 |
Oil Pan Bolt [ 5x ] M8 x 120 |
| 13 |
Oil Filter |
| 14 |
Oil Filter Adapter Fitting |
| 15 |
Lower Oil Pan |
| 16 |
Oil Pan Drain Plug |
| 17 |
Lower Oil Pan Bolt [ 13x ] M6 x 20.65 |
| 18 |
Engine Oil Level Indicator Switch Bolt [ 2x ] |
| 19 |
Engine Oil Level Indicator Switch O-Ring Seal |
| 20 |
Engine Oil Level Indicator Switch |
| 21 |
Oil Pan Plug |
| 22 |
Engine Oil Level Switch Clip |
| 23 |
Oil Pan Bolt [ 8x ] M8 x 35 |

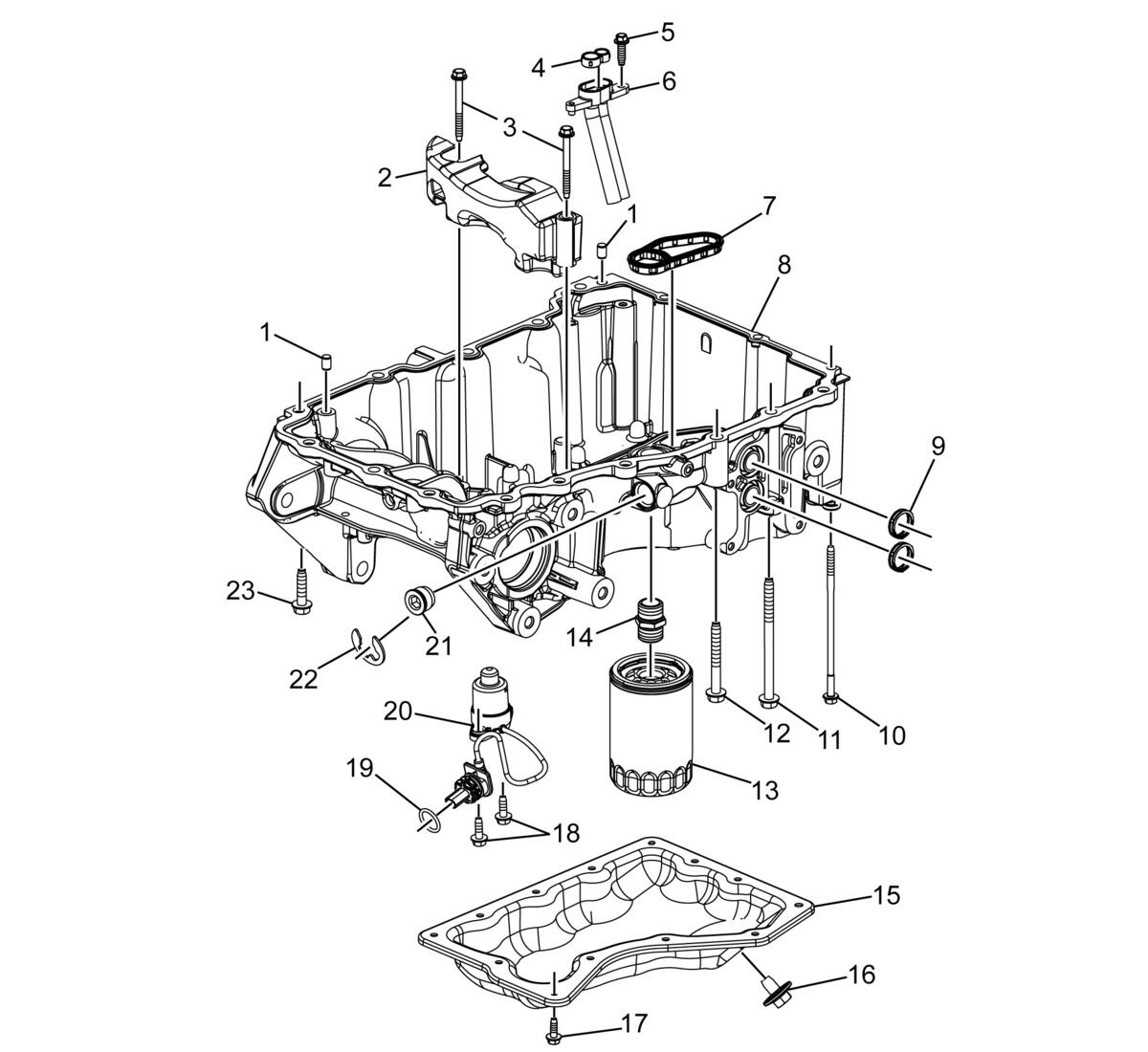

Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Dowel Pin [ 2x ] |
| 2 |
Oil Pan Baffle |
| 3 |
Oil Pan Baffle Bolt [ 2x ] |
| 4 |
Positive Crankcase Ventilation Oil Separator Drain Seal |
| 5 |
Positive Crankcase Ventilation Oil Separator Drain Bolt |
| 6 |
Positive Crankcase Ventilation Oil Separator Drain |
| 7 |
Oil Pan High Pressure Port Seal |
| 8 |
Oil Pan |
| 9 |
Engine Oil Cooler Adapter Seal [ 2x ] |
| 10 |
Oil Pan Cover Bolt [ 2x ] |
| 11 |
Oil Pan Bolt [ 3x ] M6 x 150 |
| 12 |
Oil Pan Bolt [ 5x ] M8 x 120 |
| 13 |
Oil Filter |
| 14 |
Oil Filter Adapter Fitting |
| 15 |
Lower Oil Pan |
| 16 |
Lower Oil Pan Bolt [ 13x ] M6 x 20.65 |
| 17 |
Oil Pan Drain Plug |
| 18 |
Engine Oil Level Indicator Switch Bolt [ 2x ] |
| 19 |
Engine Oil Level Indicator Switch |
| 20 |
Engine Oil Level Indicator Switch O-Ring Seal |
| 21 |
Oil Pan Plug |
| 22 |
Oil Pan Bolt [ 8x ] M8 x 35 |
| 23 |
Engine Oil Level Switch Clip |
