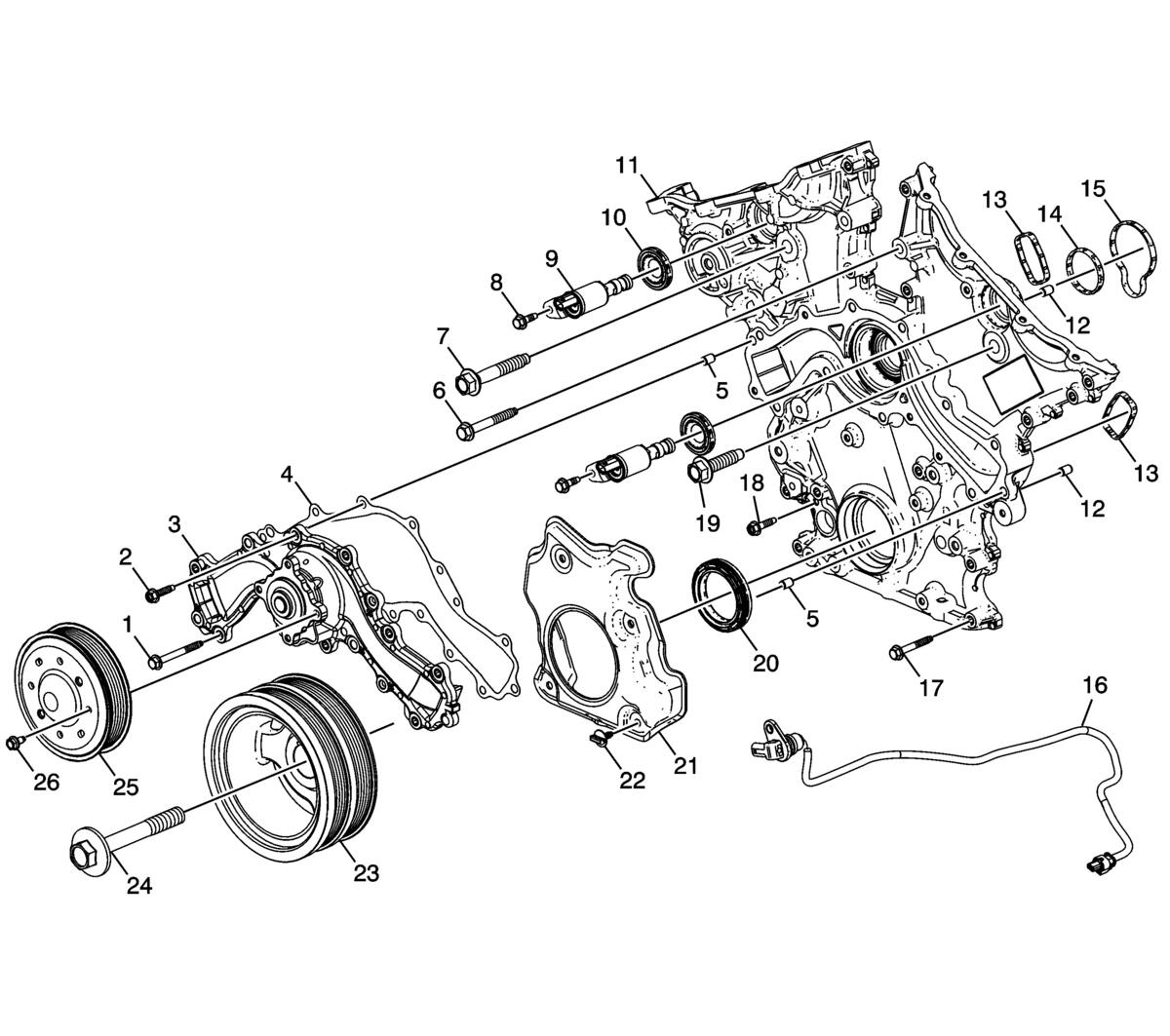

Engine Front Cover
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Water Pump Bolt [ 5x ] M6 x 20 |
| 2 | Water Pump Bolt [ 9x ] M6 x 60 |
| 3 | Water Pump Housing |
| 4 | Water Pump Gasket |
| 5 | Water Pump Locating Pin [ 2x ] |
| 6 | Engine Front Cover Bolt [ 2x ] M8 x 66 |
| 7 | Engine Front Cover Bolt M12 x 75 |
| 8 | Camshaft Position Actuator Control Valve Bolt [ 2x ] |
| 9 | Camshaft Position Actuator Control Valve [ 2x ] |
| 10 | Camshaft Position Actuator Control Valve Seal [ 2x ] |
| 11 | Engine Front Cover |
| 12 | Engine Front Cover Locating Pin [ 2x ] |
| 13 | Water Pump Seal [ 2x ] |
| 14 | Water Pump Seal |
| 15 | Water Pump Seal |
| 16 | Oil Pump Flow Control Solenoid Valve Wire |
| 17 | Engine Front Cover Bolt [ 16x ] M8 x 45 |
| 18 | Harness Connector Bolt |
| 19 | Engine Front Cover Bolt M12 x 50 |
| 20 | Crankshaft Front Oil Seal |
| 21 | Engine Front Cover Insulator |
| 22 | Engine Front Cover Retainer [ 4x ] |
| 23 | Crankshaft Balancer |
| 24 | Crankshaft Balancer Bolt |
| 25 | Water Pump Pulley |
| 26 | Water Pump Pulley Bolt [ 4x ] |
