Engine Block Components
WARNING: This page is about a different variant/trim than selected.

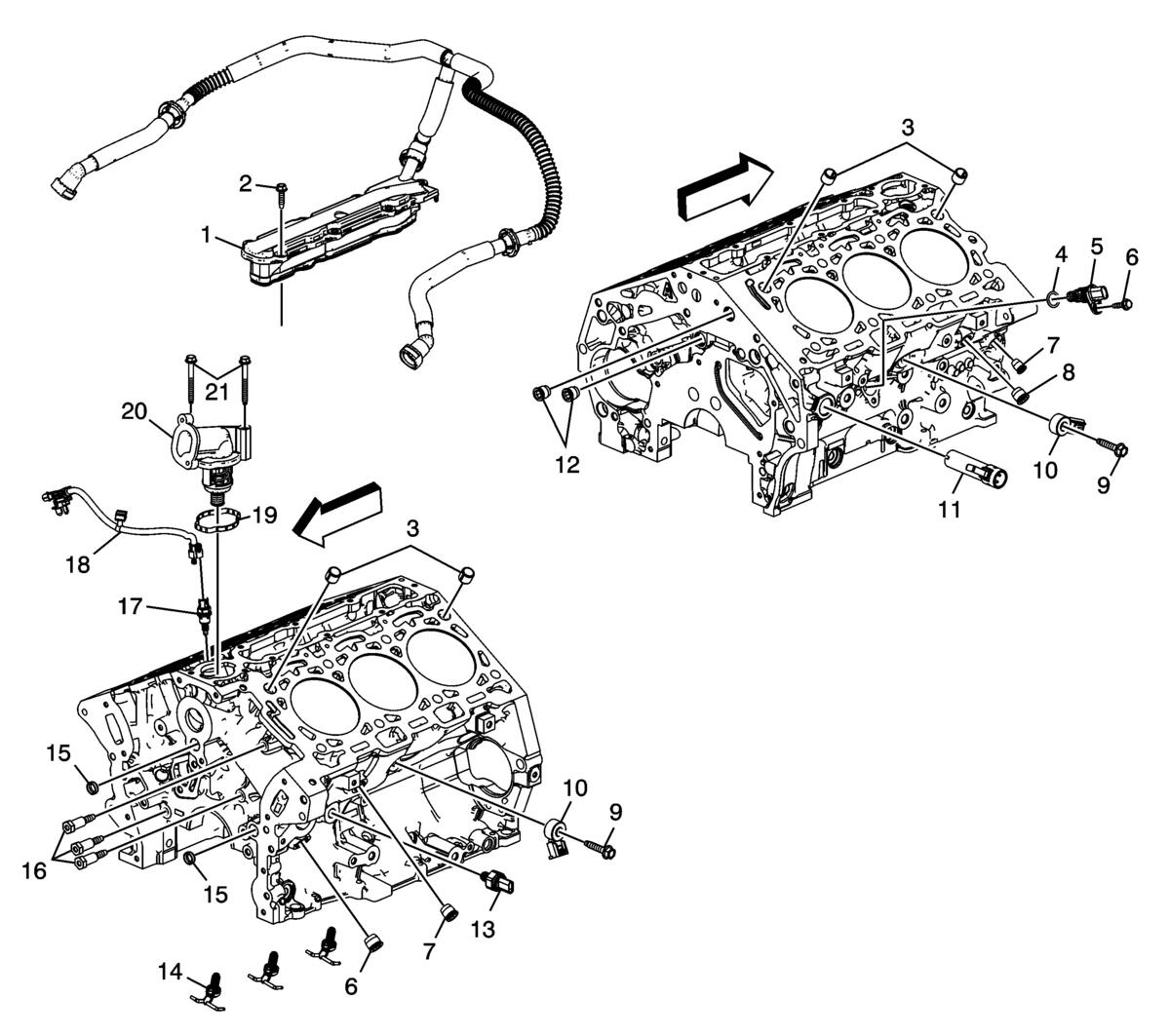

| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation Oil Separator |
| 2 | Positive Crankcase Ventilation Oil Separator Bolt [ 6x ] |
| 3 | Cylinder Head Locating Pin |
| 4 | Crankshaft Position Sensor Seal |
| 5 | Crankshaft Position Sensor |
| 6 | Crankshaft Position Sensor Bolt |
| 7 | Engine Block Core Hole Plug M16 x 16.25 |
| 8 | Engine Block Core Hole Plug M18 x 16.25 |
| 9 | Knock Sensor Bolt [ 2x ] |
| 10 | Knock Sensor |
| 11 | Engine Coolant Heater |
| 12 | Engine Block Oil Gallery Plug M16 x 16.25 |
| 13 | Engine Oil Pressure Sensor |
| 14 | Piston Oil Nozzle [ 3x ] |
| 15 | Engine Block Oil Gallery Plug 14 mm |
| 16 | Engine Front Cover Stud [ 3x ] |
| 17 | Engine Coolant Temperature Sensor |
| 18 | Engine Coolant Temperature Sensor Wire |
