Charge Air Cooler and Components
WARNING: This page is about a different variant/trim than selected.

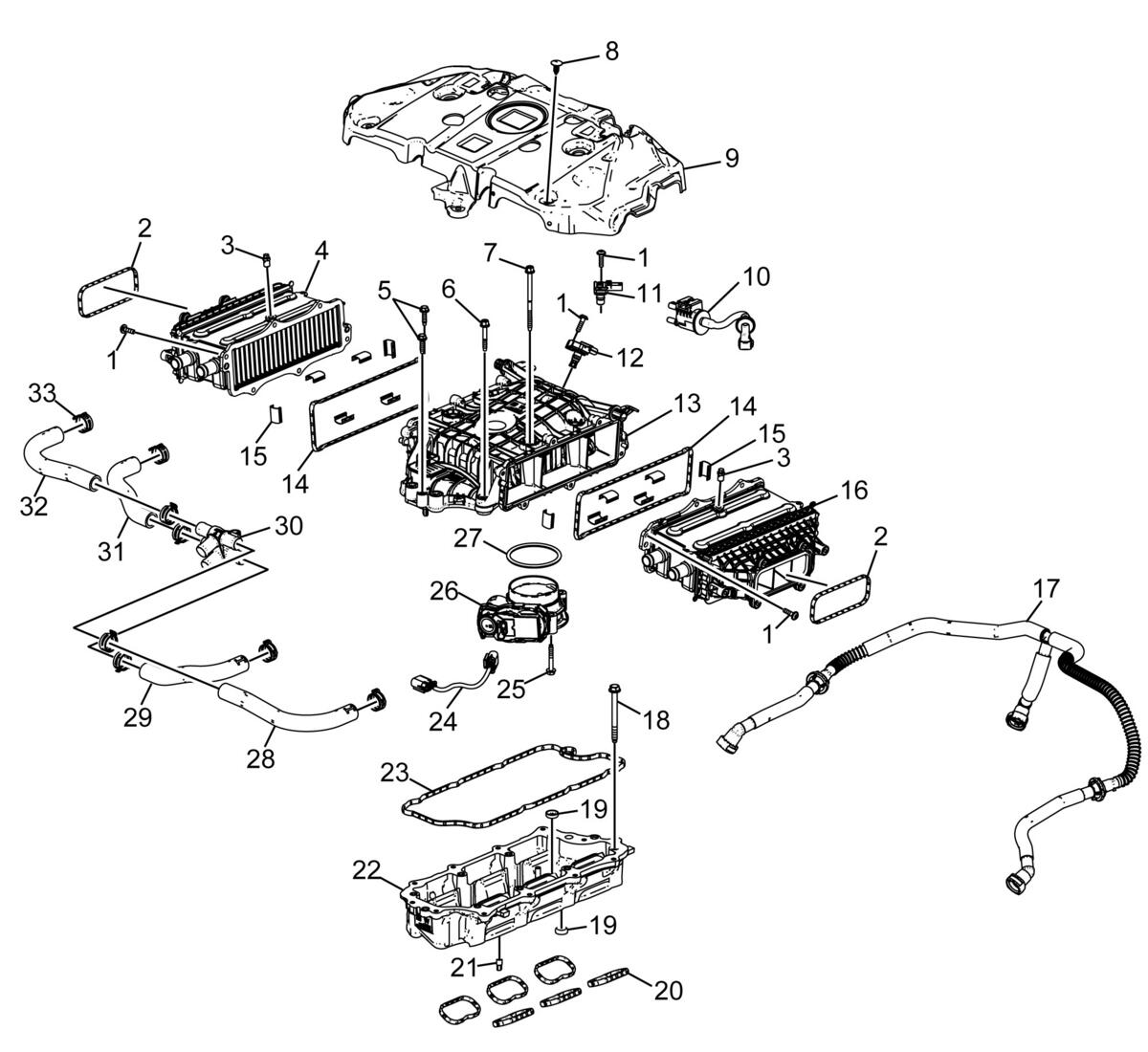

| Callout | Component Name |
|---|---|
| 1 | Charge Air Cooler Bolt [ 12x ] M6 x 23 |
| 2 | Charge Air Cooler Inlet Air Tube Seal [ 2x ] |
| 3 | Engine Coolant Air Bleed Valve [ 2x ] |
| 4 | Charge Air Cooler - Right Side |
| 5 | Charge Air Cooler Coolant Manifold Bolt [ 2x ] |
| 6 | Charge Air Cooler Cover Bolt [ 8x ] M6 x 43.45 |
| 7 | Charge Air Cooler Cover Bolt [ 4x ] M6 x 102.75 |
| 8 | Charge Air Cooler Insulator Retainer [ 6x ] |
| 9 | Charge Air Cooler Insulator |
| 10 | Evaporative Emission Canister |
| 11 | Manifold Absolute Pressure Sensor |
| 12 | Intake Air Pressure and Temperature Sensor |
| 13 | Charge Air Cooler Cover |
| 14 | Charge Air Cooler Housing Gasket [ 2x ] |
| 15 | Charge Air Cooler Retainer [ 12x ] |
| 16 | Charge Air Cooler - Left Side |
| 17 | Positive Crankcase Ventilation Tube Connector |
| 18 | Lower Intake Manifold Bolt [ 8x ] M8 x 90.8 |
| 19 | Intake Manifold Core Hole Plug [ 2x ] |
| 20 | Intake Manifold Seal [ 6x ] |
| 21 | Intake Manifold Locating Pin |
| 22 | Intake Manifold |
| 23 | Charge Air Cooler Cover Seal |
| 24 | Throttle Actuator Wire |
| 25 | Throttle Body Bolt [ 4x ] |
| 26 | Throttle Body |
| 27 | Throttle Body Gasket |
| 28 | Charge Air Cooler Coolant Hose |
| 29 | Charge Air Cooler Coolant Hose |
| 30 | Charge Air Cooler Coolant Hose Connector |
| 31 | Charge Air Cooler Coolant Hose |
| 32 | Charge Air Cooler Coolant Hose |
