Engine Coolant Temperature Sensor Replacement - Water Pump Outlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Partially drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716) .

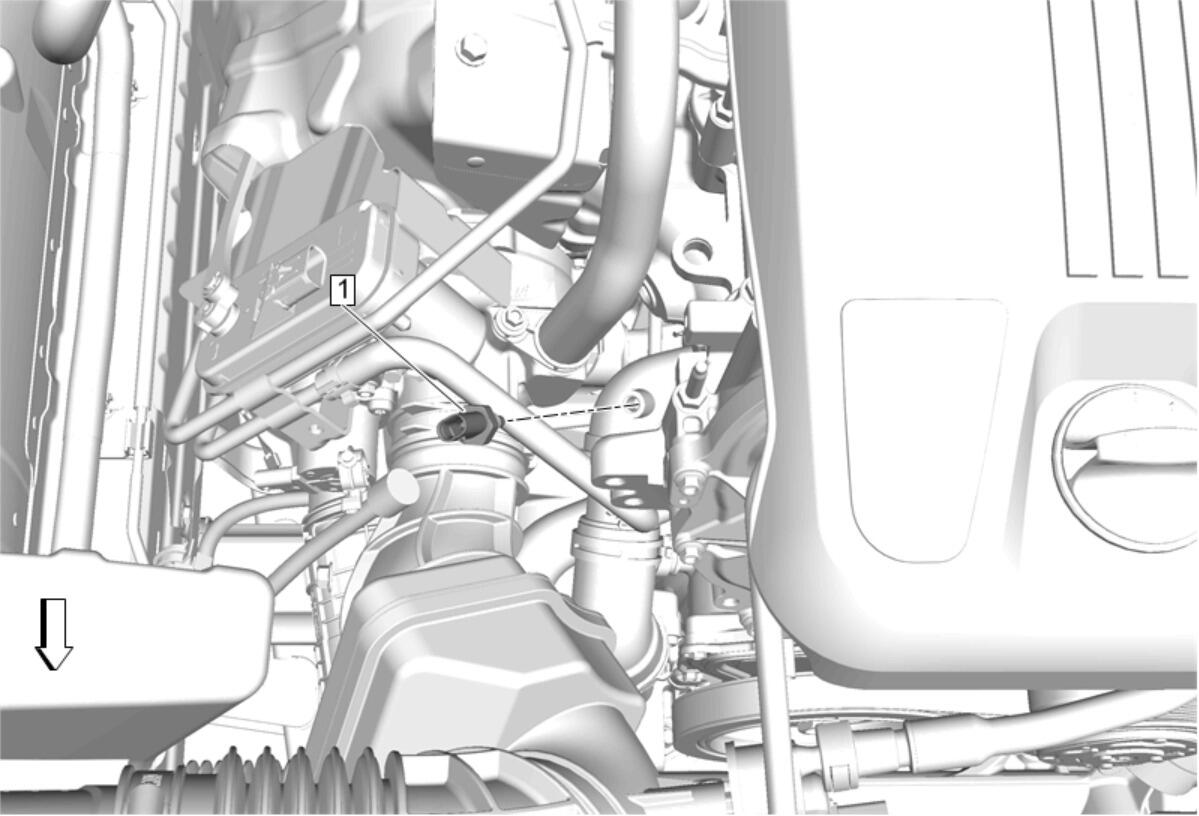

1	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the electrical connector. Tighten  9 N.m (80 lb/in)
