Air Cleaner Element Replacement

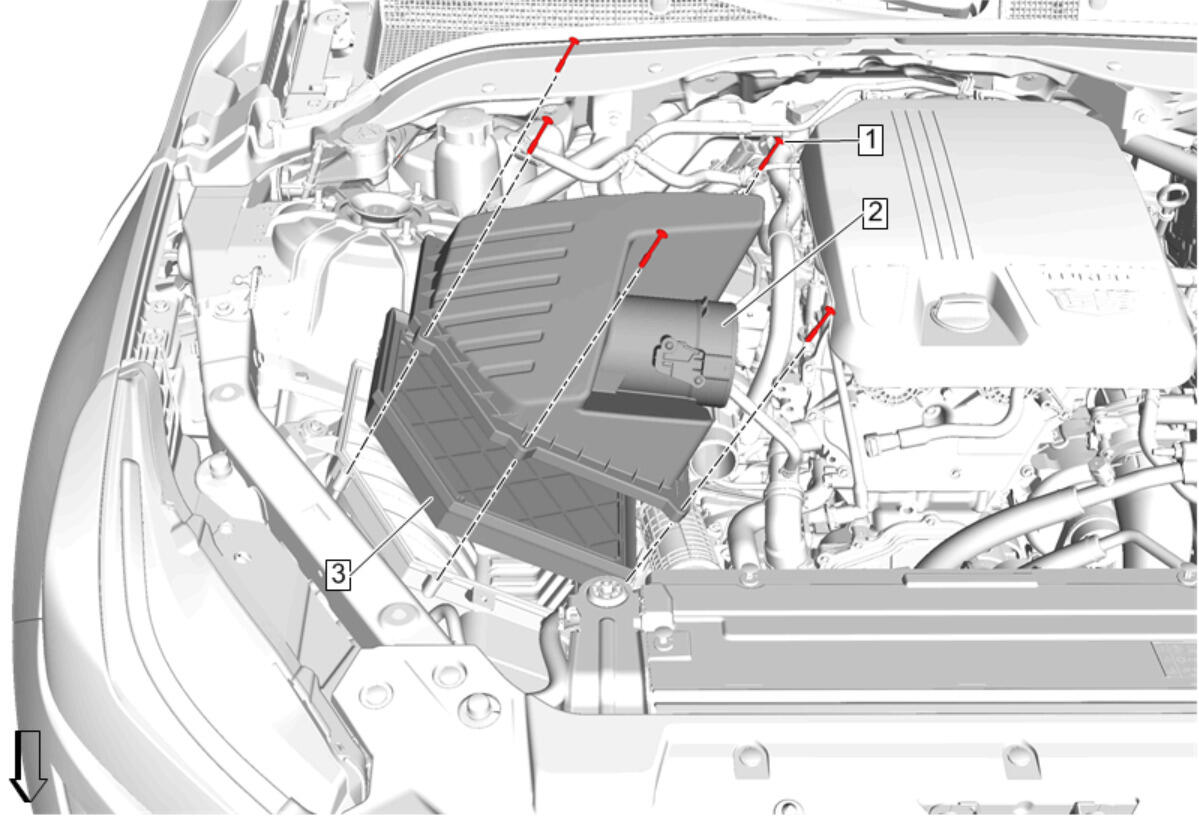

GM5312855Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
1 Air Cleaner Housing Cover Bolt [ 5x ]
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb/in)
2 Air Cleaner Housing Cover
3 Air Cleaner Element
