Catalytic Converter Brace Replacement (LGY)

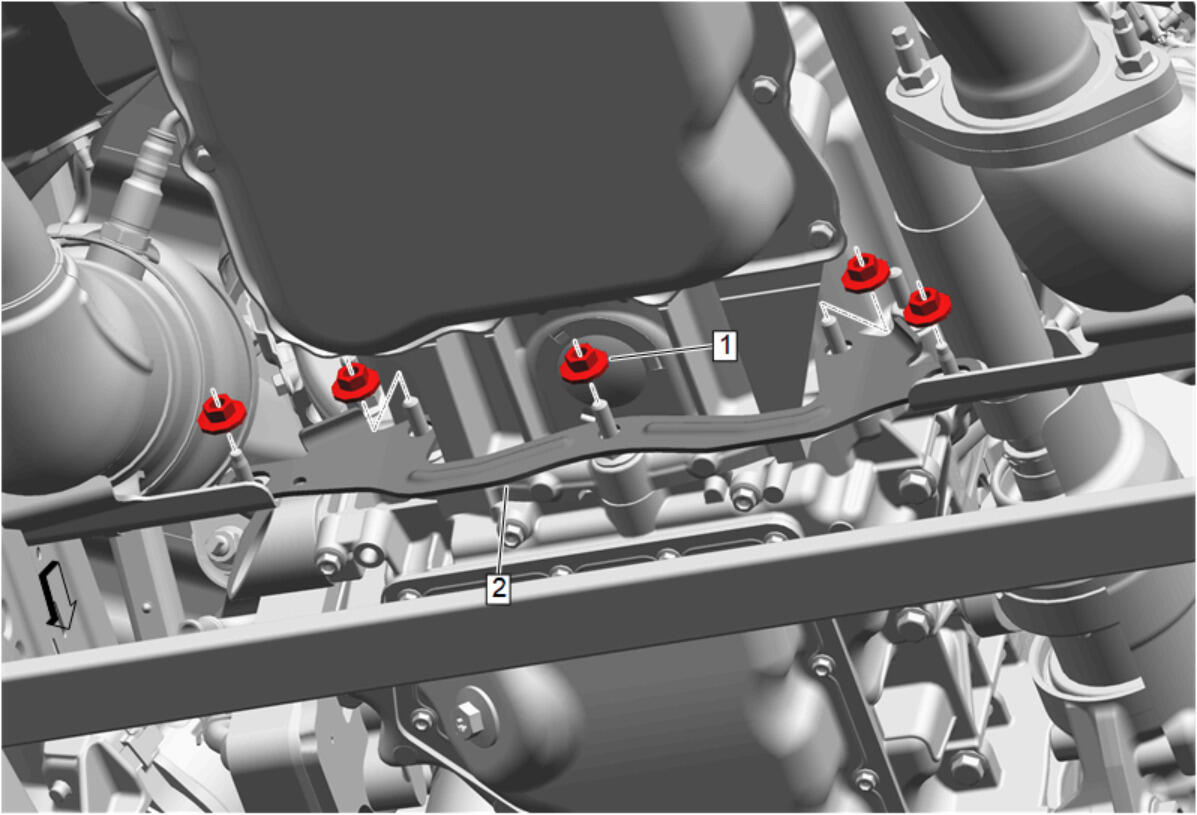

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Catalytic Converter Brace Bracket Nut [ 5x ]
CAUTION:
Refer to Fastener Caution . 22 N.m (16 lb ft) |
| 2 | Catalytic Converter Brace |
