Oil Pump Screen Replacement

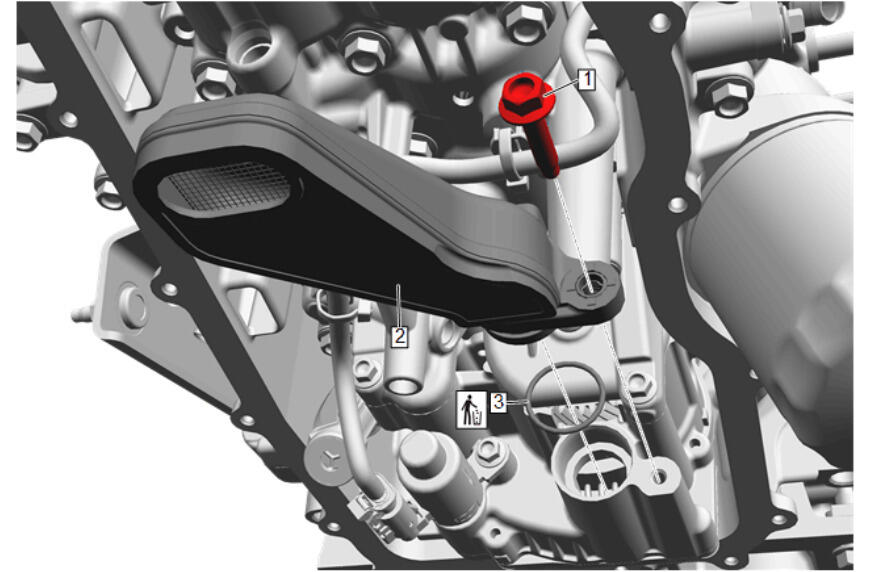

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower Oil Pan Replacement |
|
| 1 | Oil Pump Suction Pipe Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb/in) |
| 2 | Oil Pump Screen |
| 3 | Oil Pump Screen Gasket Install NEW |
