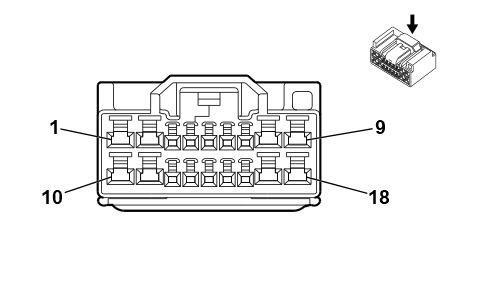

K61 Sunroof Control Module (C3U)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Sunroof
- OEM Connector: 7283-5846
- Service Connector: Service by Harness -
- Description: 18 -Way F 040, 090 Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| II |
Not required |
J-35616-18 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2 |
BK |
2350 |
Ground |
II |
- |
| 2 |
2 |
BN |
2350 |
Ground |
II |
- |
| 3 |
0.35 |
BU |
2854 |
Body Control Module LIN Bus 8 |
I |
- |
| 4 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
BK |
128 |
Sunroof Switch Low Reference |
II |
- |
| 10 |
2 |
PK |
3781 |
Front Sunroof Sunshade Motor Open Control |
II |
- |
| 11 |
2 |
BU |
3782 |
Front Sunshade Motor Close Control |
II |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.35 |
YE |
5034 |
Sunroof Obstruction Sensor Signal 1 |
I |
- |
| 14 |
0.35 |
PU |
5124 |
Sunroof Obstruction Sensor Signal 2 |
I |
- |
| 15 |
0.35 |
RD |
5033 |
Sunroof Obstruction Sensor Voltage Reference |
I |
- |
| 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
2 |
RD |
3540 |
Battery Positive Voltage |
II |
- |
| 18 |
2 |
OG |
3540 |
Battery Positive Voltage |
II |
- |
