Front Seat Cushion Frame Replacement

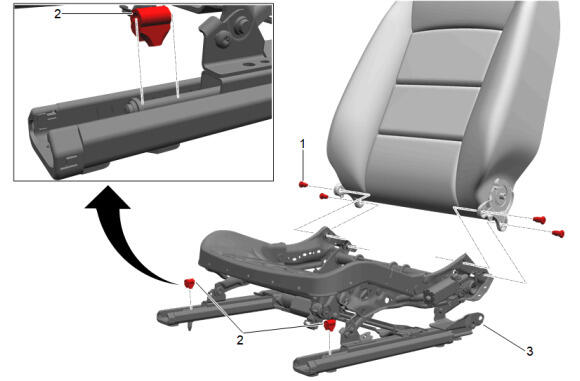

GM5493960Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Procedure Front Seat Cushion Cover and Pad Replacement
1 Driver or Passenger Seat Back Frame Bolt [ 4x ]
NOTE:

Refer to the procedure link for torque specification.

Procedure

  1. Remove the seat back frame bolts.
  2. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  3. Install the bolts on both sides. Front Seat Back Frame Replacement
2 Front Seat Adjuster Stop [ 2x ]
NOTE:

The new cushion frame may not have adjuster stops installed. Transfer the adjuster stops from original frame or install new as needed. The frame may need to be adjusted to access the adjuster stops.
3 Driver or Passenger Seat Cushion Frame

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
