Front Crossmember Brace Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|

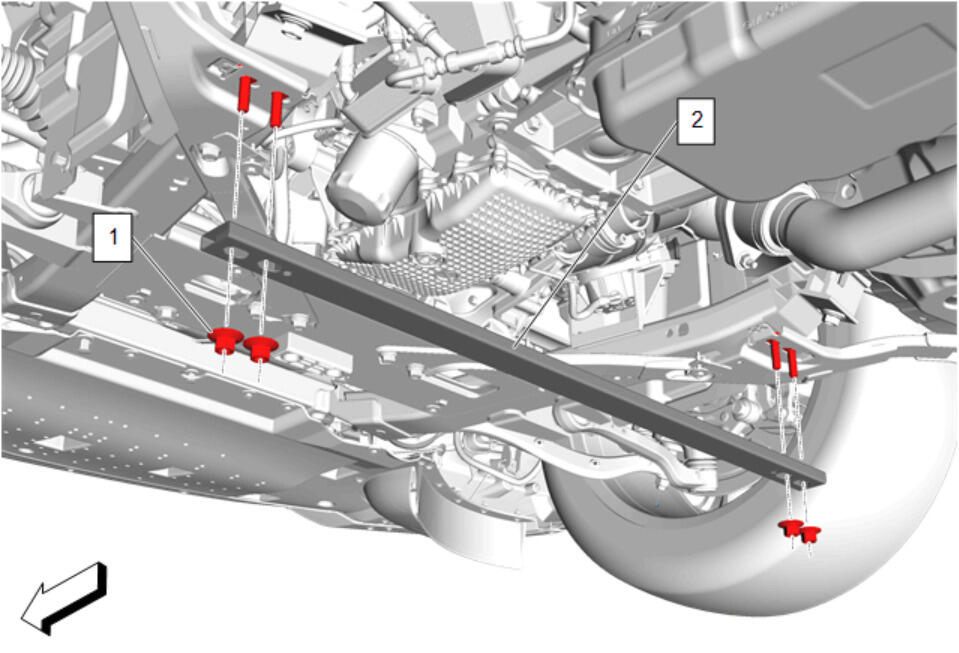

| 1 | Front Crossmember Brace Nut [ 4x ]
CAUTION:
Refer to Fastener Caution Tighten 50 N.m (37 lb ft) |
| 2 | Front Crossmember Brace |
