Auxiliary Fluid Accumulator Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

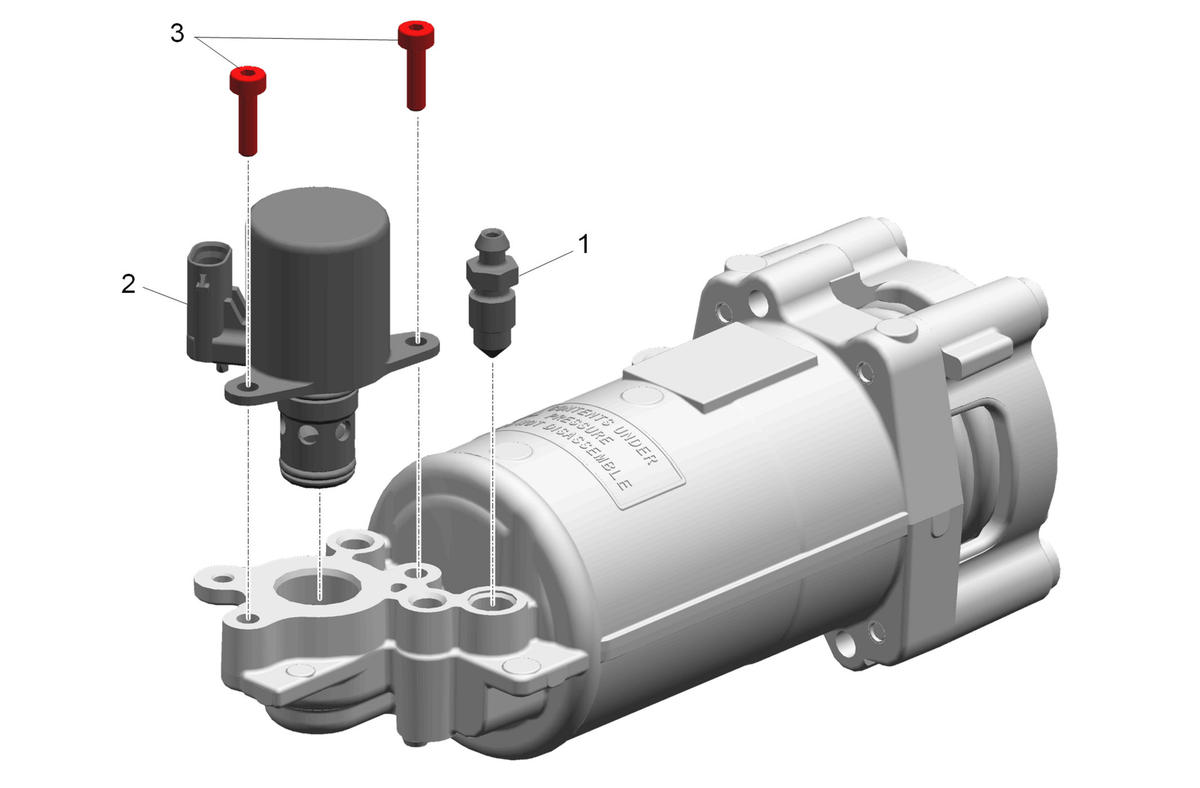

Automatic Transmission Auxiliary Fluid Accumulator Bleeder Valve (1) - Install and tighten - Fastener Specifications
Automatic Transmission Auxiliary Fluid Accumulator Solenoid (2) - Install
Automatic Transmission Auxiliary Fluid Accumulator Bolt (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

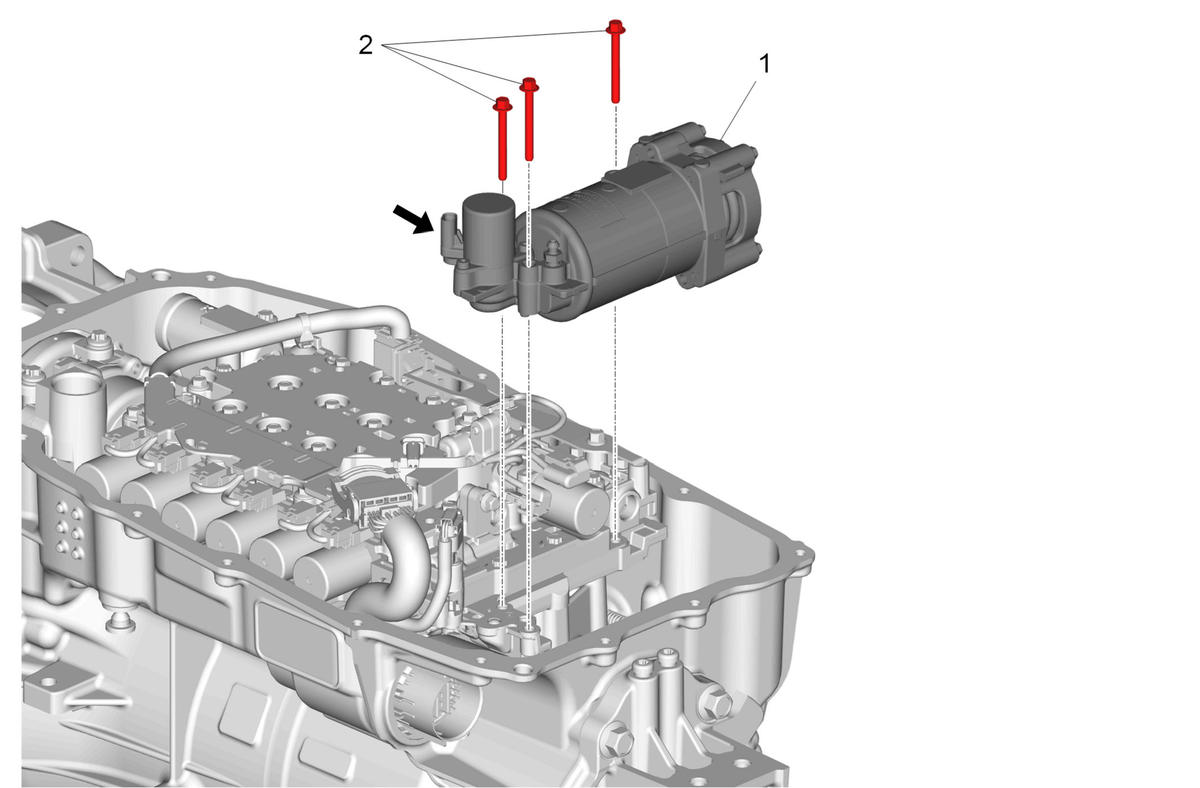

Automatic Transmission Auxiliary Fluid Accumulator (1) - Install
Control Valve Lower Body Bolt (2) - Install and tighten [3x] - Fastener Specifications
Connect the electrical connector indicated by arrow.
