Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

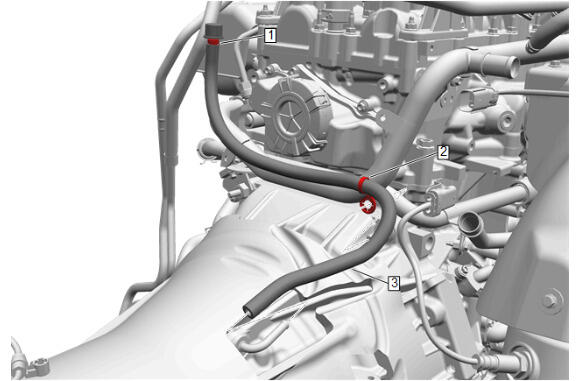

  1. GM5518959Courtesy of GENERAL MOTORS COMPANY

    Transmission Vent Hose (3) - Install

  2. Connect the transmission vent hose retainers (1) and (2).
  3. Transmission - Install - Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Rear Wheel Drive)
