Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Check the transmission fluid level and condition and correct as necessary. Transmission Fluid Level and Condition Check

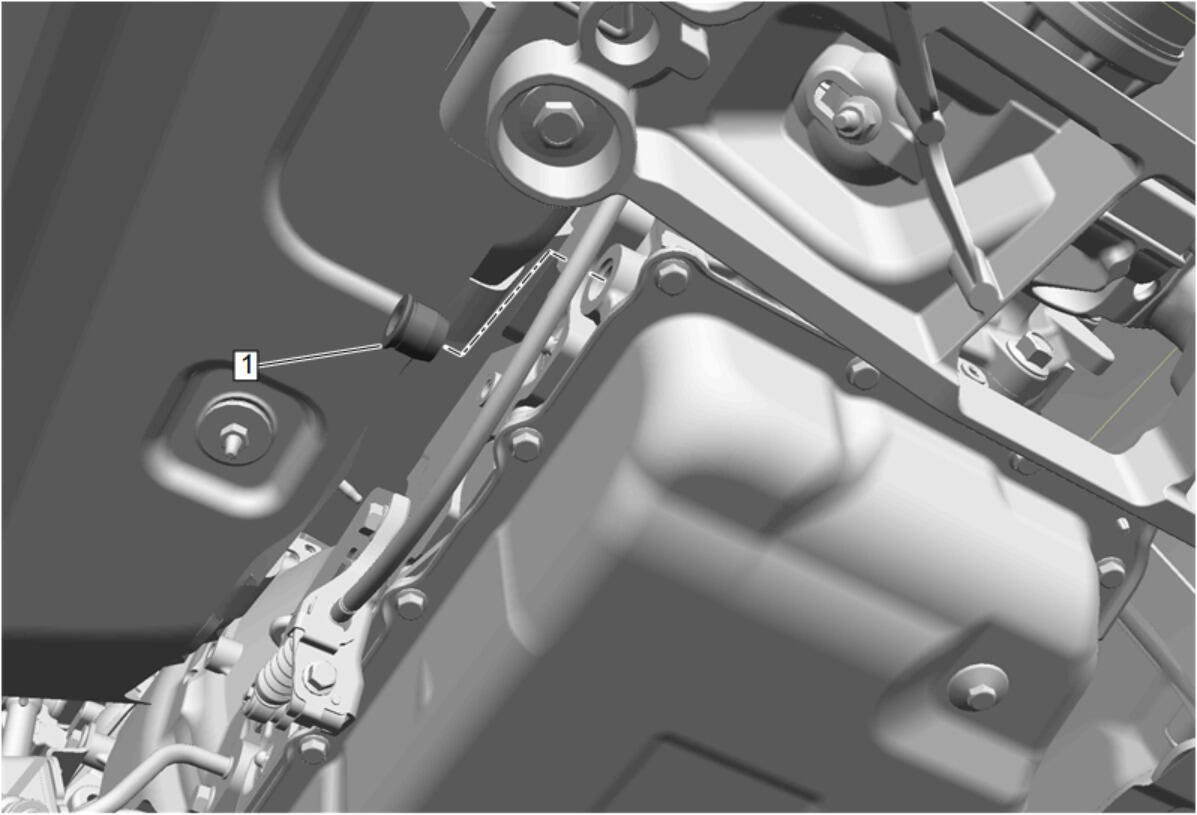

Prepare the automatic transmission case hole plug (1) for installation as follows:
- Remove all traces of the adhesive patch from the plug and the mating threads using the appropriate tools.
- Clean the threads of the plug and mating threads with denatured alcohol or equivalent and allow to dry.
- Apply thread locking adhesive to the plug. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the plug.
- Automatic Transmission Case Hole Plug (1) - Install and tighten - Fastener Specifications
- Lower the vehicle. Lifting and Jacking the Vehicle
CAUTION:
Refer to Component Fastener Tightening Caution .
