Seal Locations (3 of 3)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

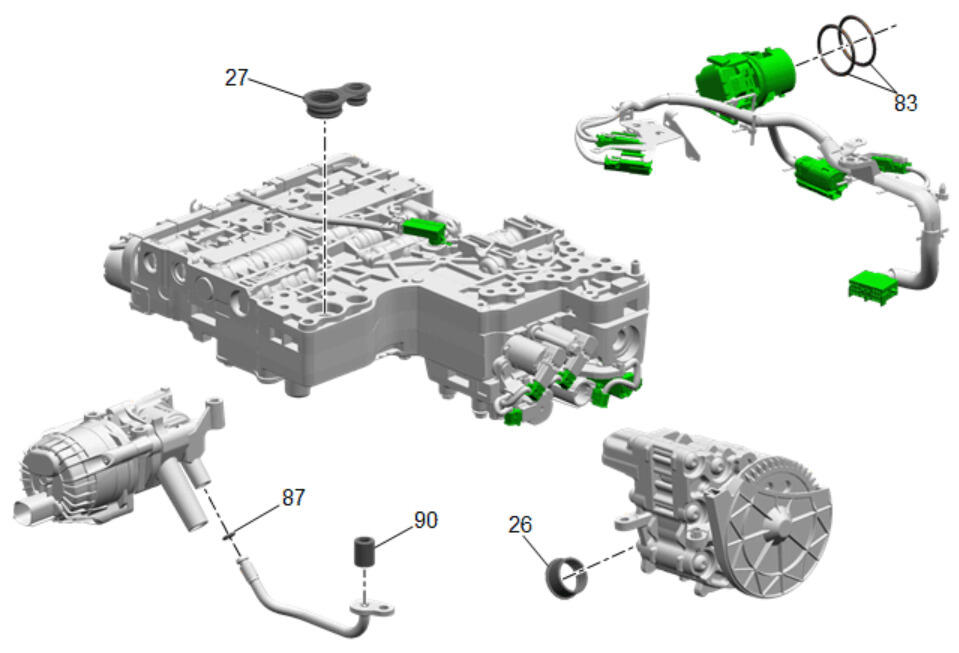

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 26 | Automatic Transmission Fluid Pump Seal |
| 27 | Automatic Transmission Fluid Pump Seal |
| 83 | Wiring Harness Connector Seal - O-Ring[2x] |
| 87 | Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal |
| 90 | Automatic Transmission Auxiliary Fluid Pump Seal |
