Case and Associated Parts (3 of 3)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

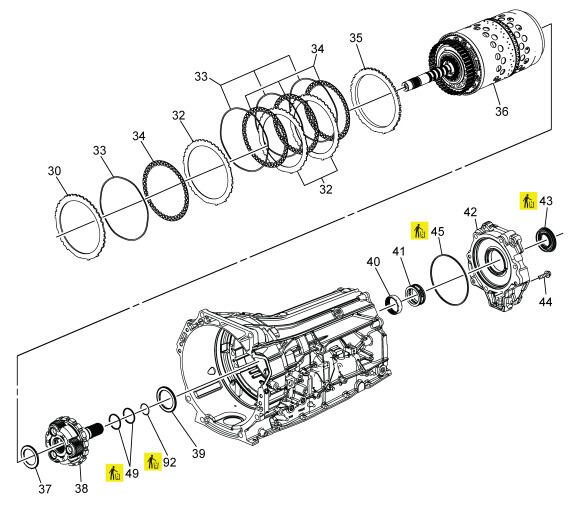

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 30 | 1-2-3-4-5-6-Reverse Clutch Apply Plate - Selective |
| 32 | 1-2-3-4-5-6-Reverse Clutch Steel Plate |
| 33 | 1-2-3-4-5-6-Reverse Clutch Piston Return Spring |
| 34 | 1-2-3-4-5-6-Reverse Clutch Friction Plate |
| 35 | 1-2-3-4-5-6-Reverse Clutch Backing Plate |
| 36 | Rotating Clutch, Gear, and Shaft Shell |
| 37 | Output Carrier Thrust Bearing |
| 38 | Output Carrier |
| 39 | Output Carrier Thrust Bearing |
| 40 | Output Shaft Bearing |
| 41 | Output Shaft Sleeve |
| 42 | Automatic Transmission Case Extension |
| 43 | Propeller Shaft Transmission Flange Fluid Seal |
| 44 | Automatic Transmission Case Extension Bolt |
| 45 | Automatic Transmission Case Extension Seal |
| 49 | Output Shaft Seal[2x] |
| 92 | Output Shaft Seal |
